Under-Dash Fuse/Relay Box Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

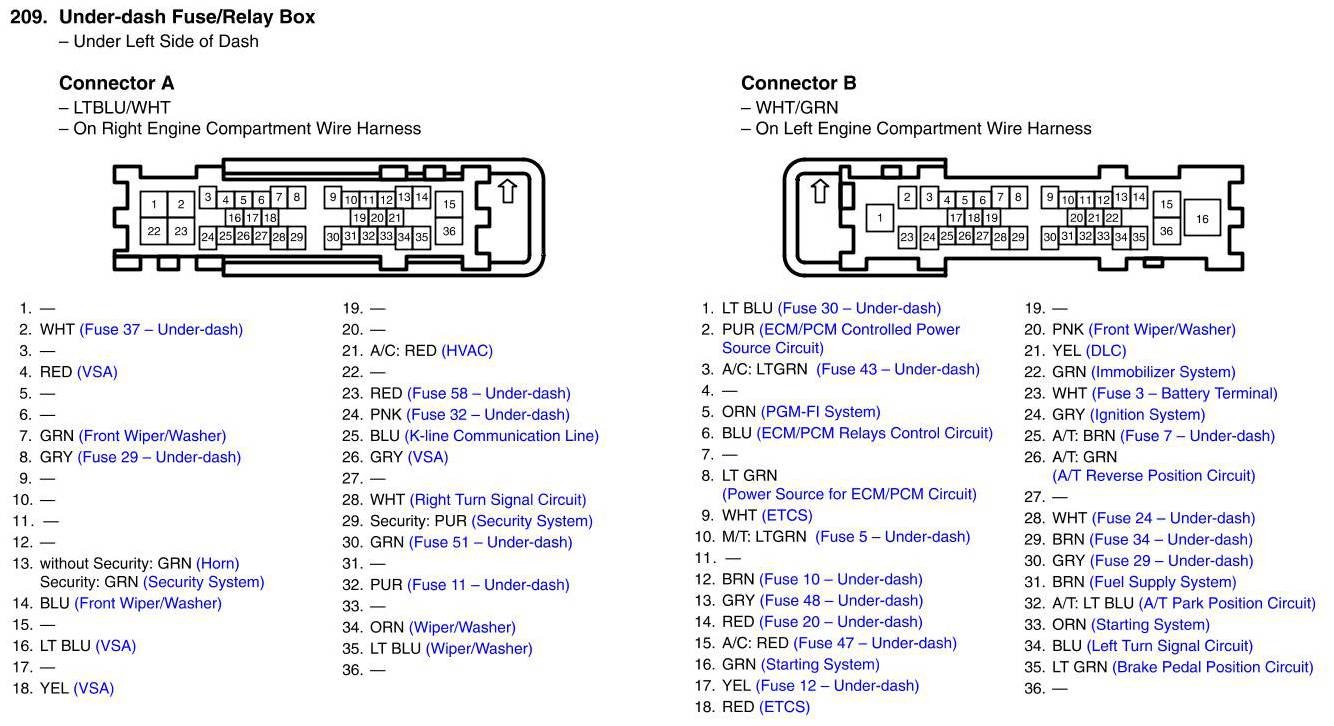

Under-Dash Fuse/Relay Box Connector View
