Overhaul

Heater Control Panel Disassembly and Reassembly

1. Remove the heater control panel Heater Control Panel Removal/Installation.

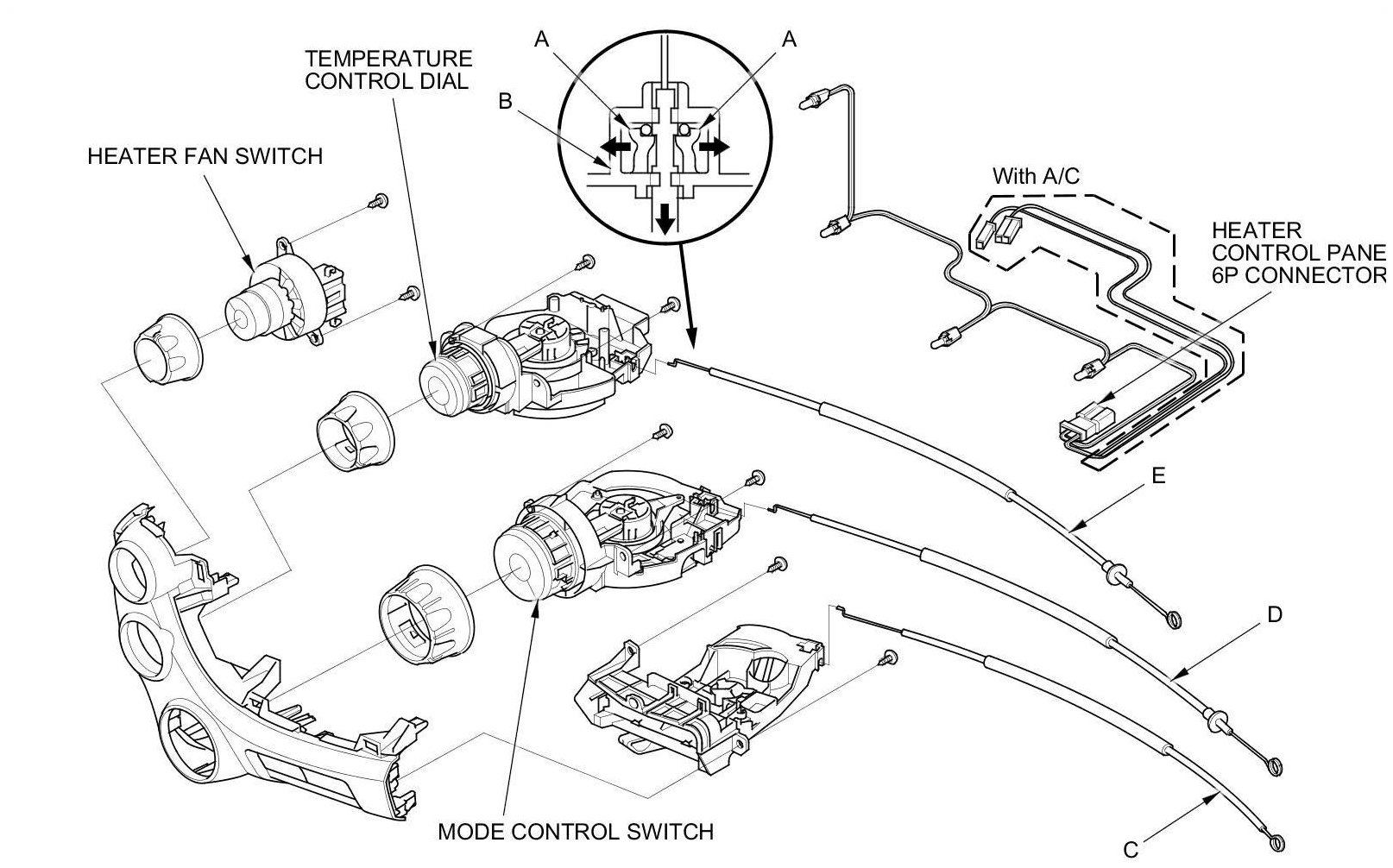

2. Spread the cable stops (A) in the cable holders (B) with snap ring pliers, then pull the recirculation control cable (C), the mode control cable (D), and the air mix control cable (E) out.





3. Hook the tip of the new control cable to the appropriate control dial or slider, then push the cable housing into the cable holder until it locks into place.

4. After assembly, make sure that the heater and fan controls operate normally.
