Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal/Installation

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

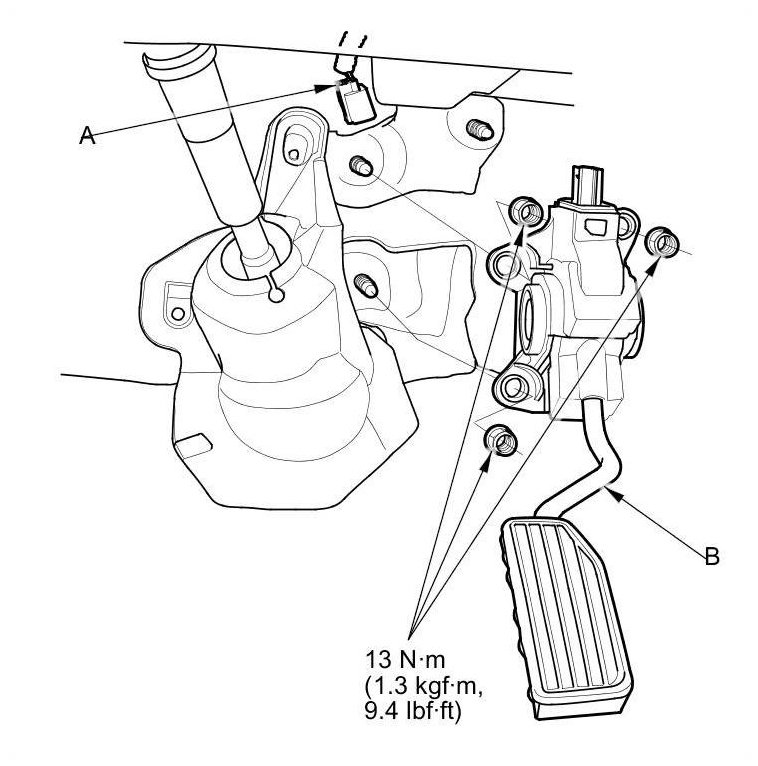

2. Disconnect the APP sensor connector (A).





3. Remove the accelerator pedal module (B).

NOTE:

- The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
- If the accelerator pedal module is dropped, replace it.

4. Install the parts in the reverse order of removal.
