A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required

- O2 Sensor Wrench Snap-on S6176 or equivalent, commercially available

1. Remove the cowl cover Service and Repair and the under-cowl panel Service and Repair.

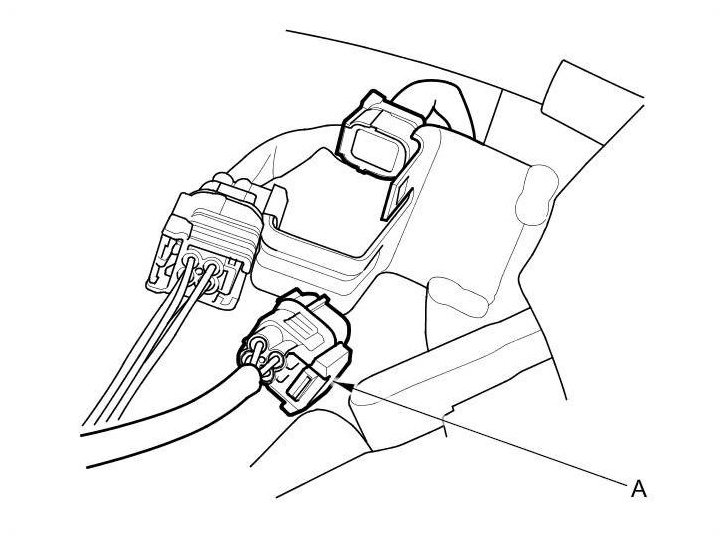

2. Disconnect the A/F sensor connector (A).

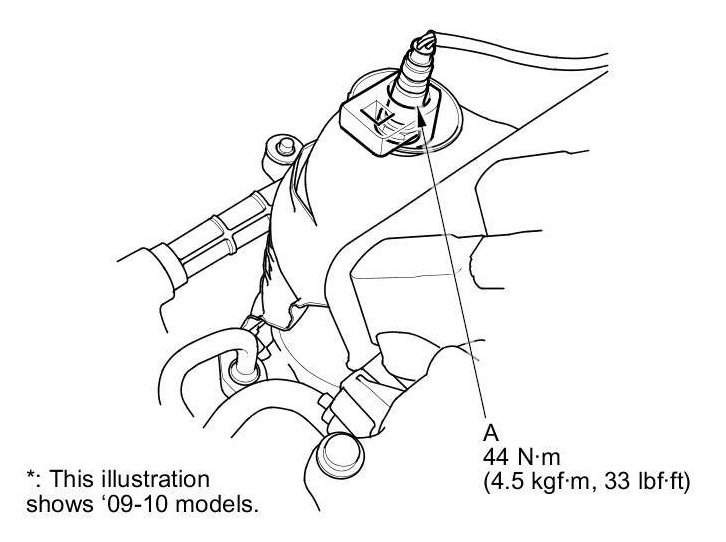

3. Remove the A/F sensor (A).





4. Install the parts in the reverse order of removal.
