Pinout Values and Diagnostic Parameters

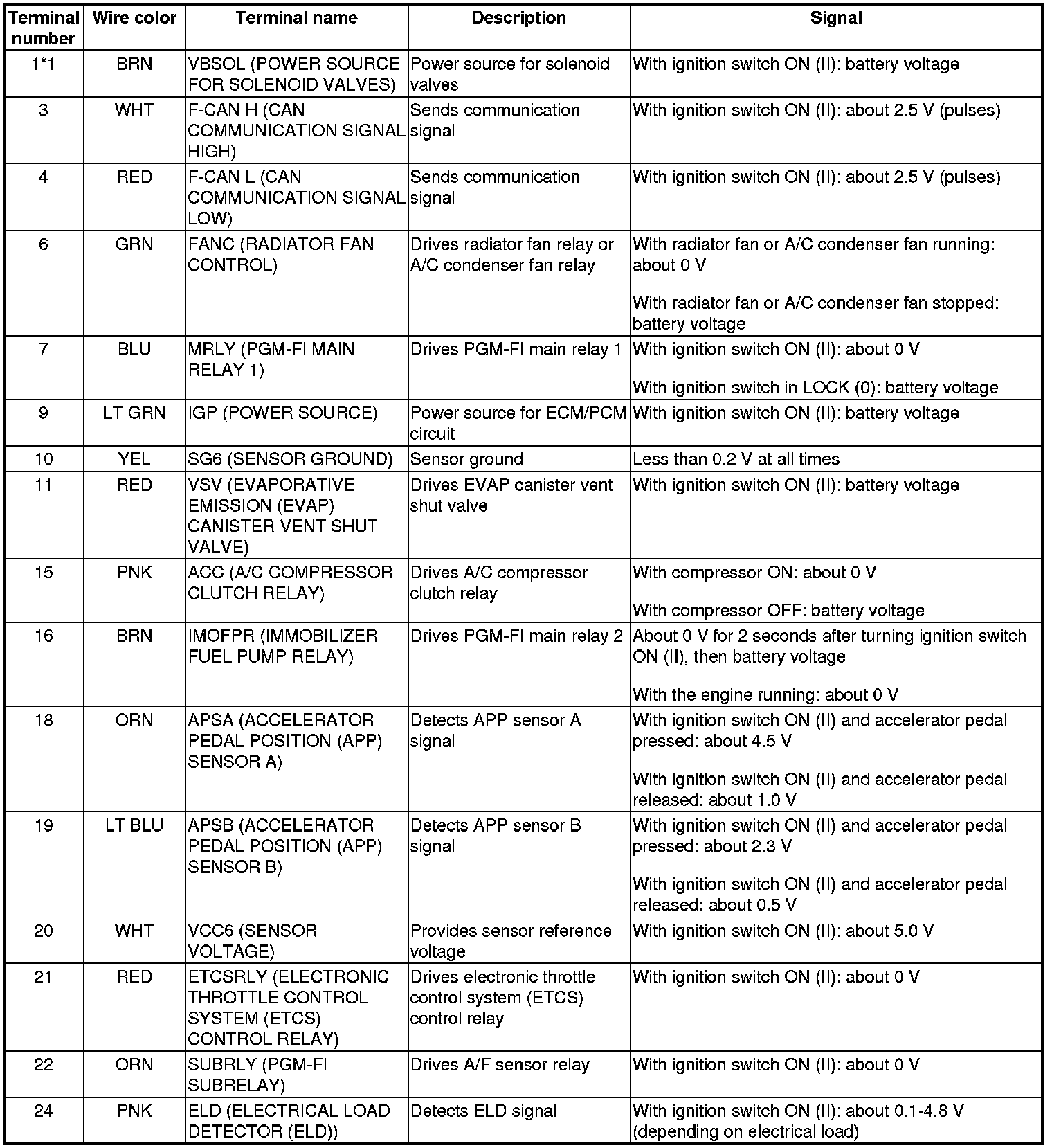

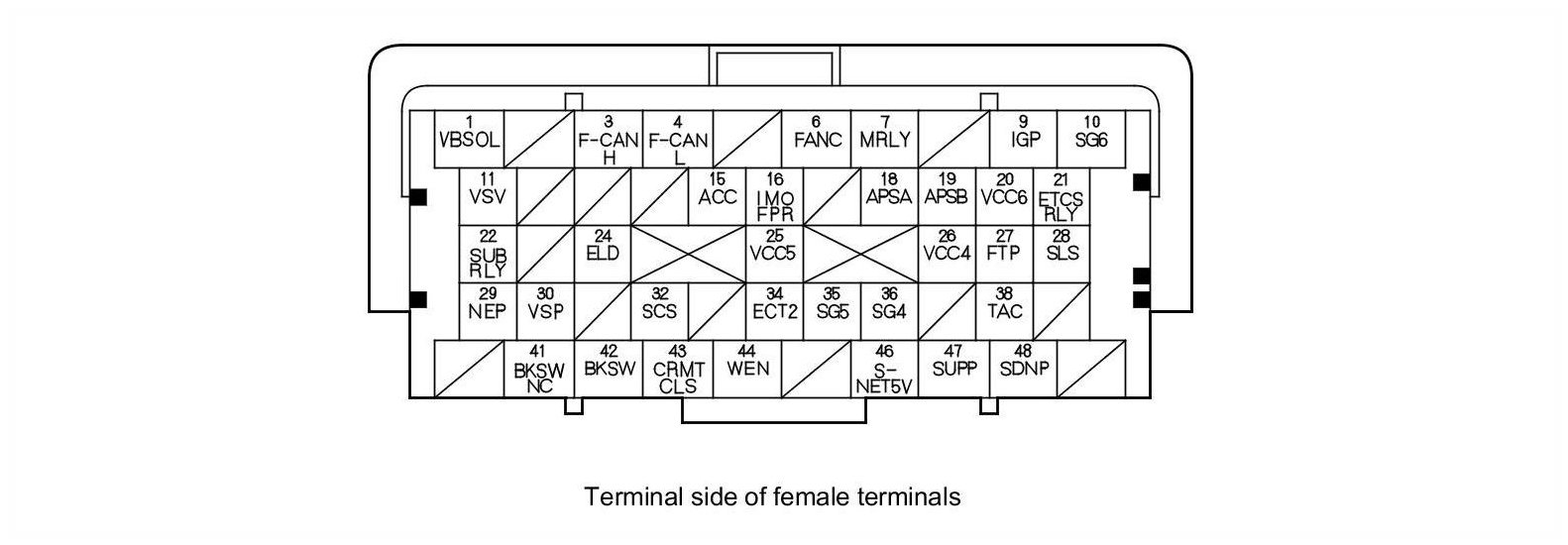

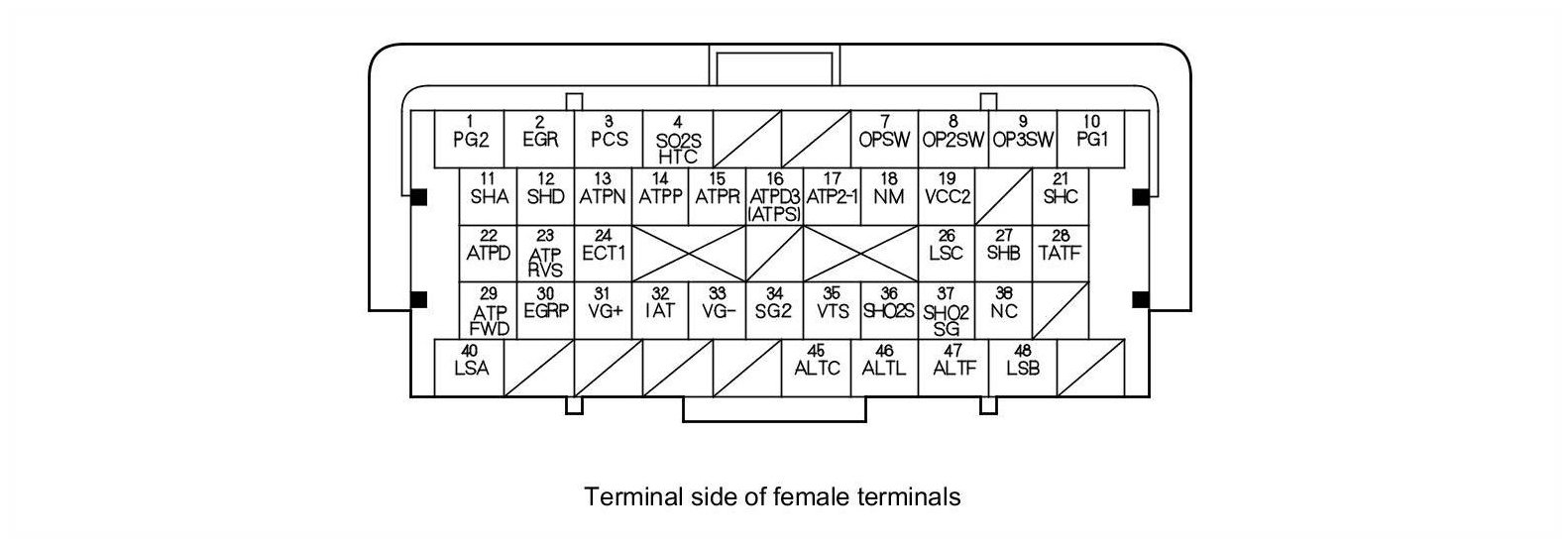

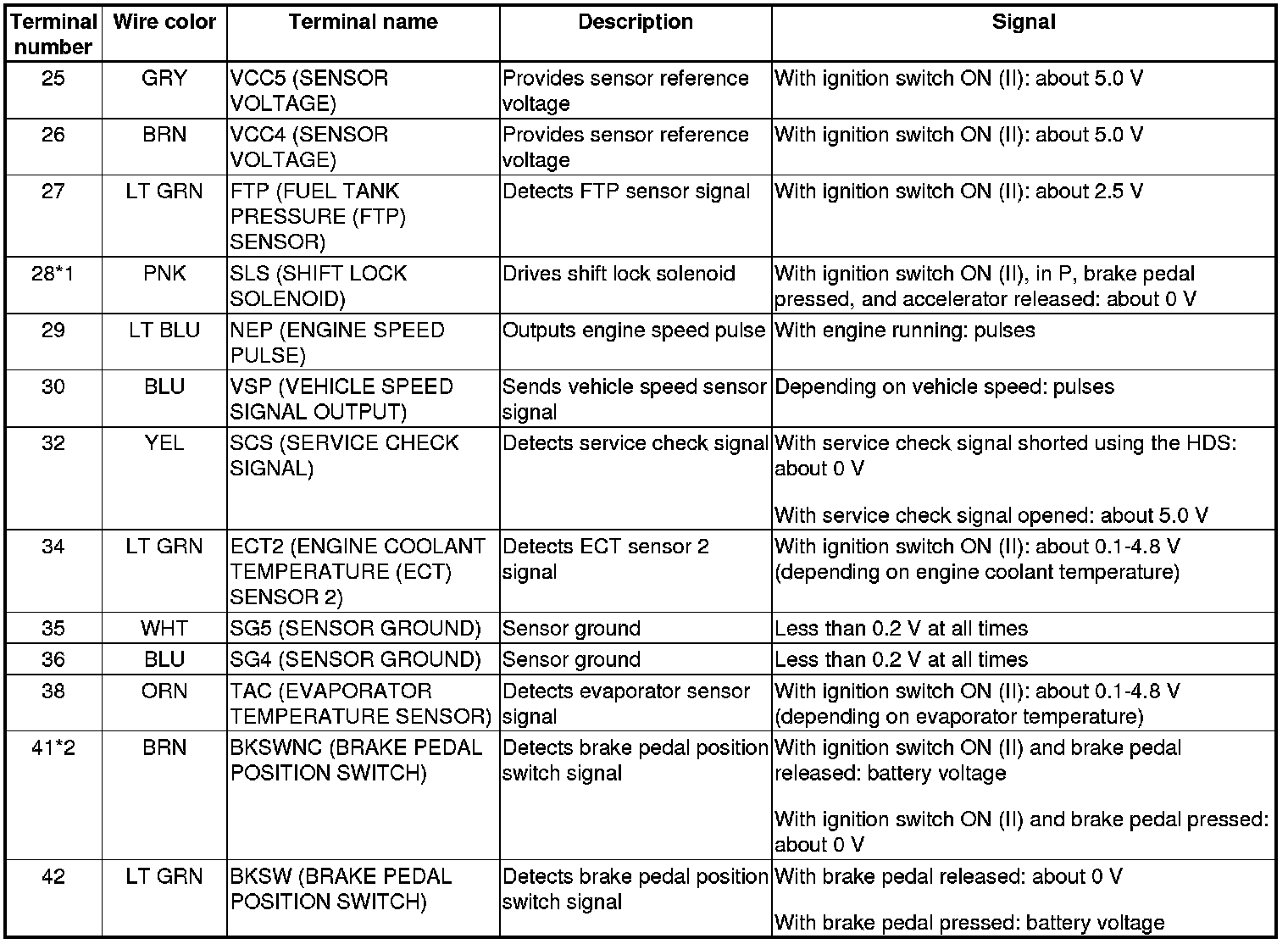

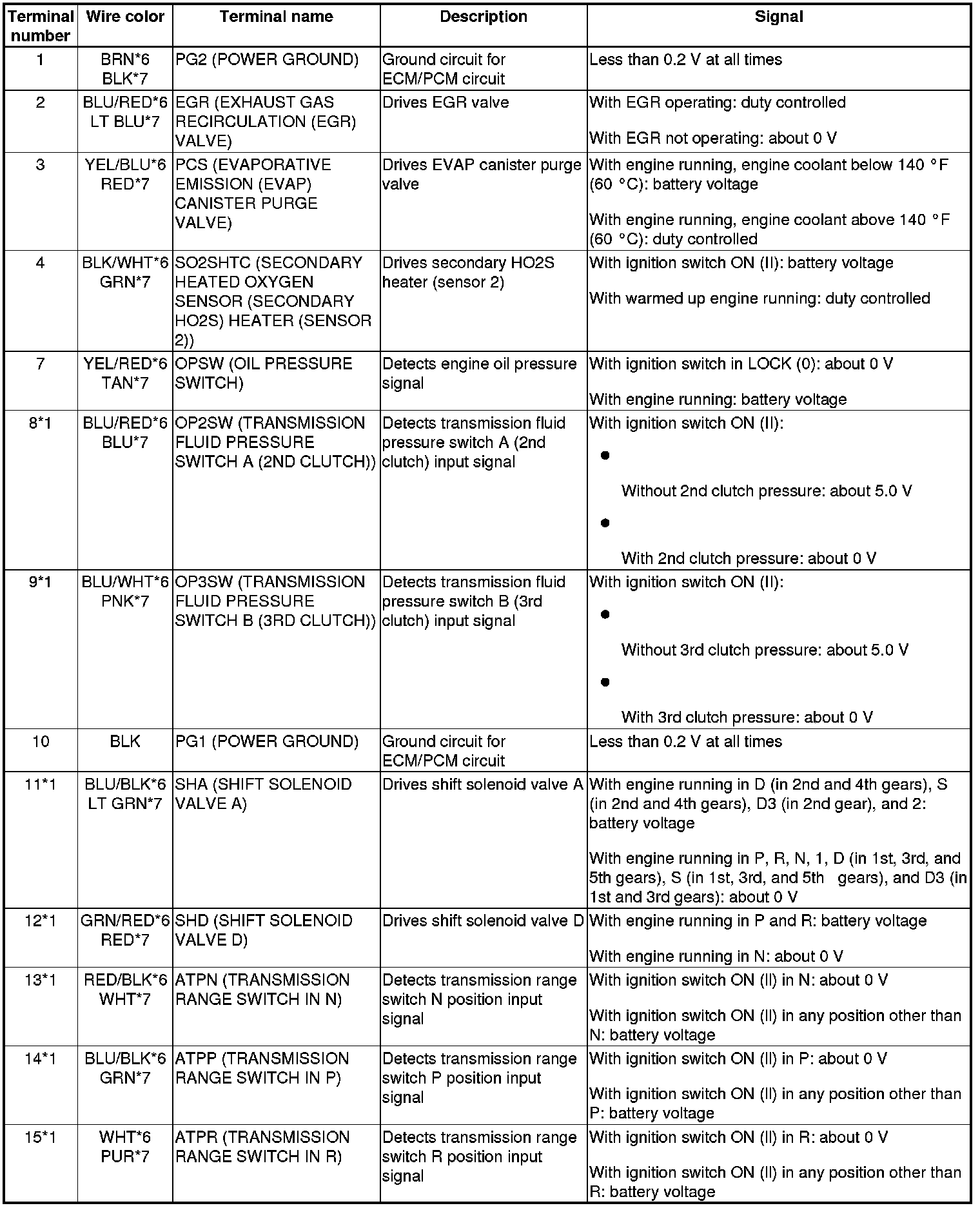

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)














ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)














ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)

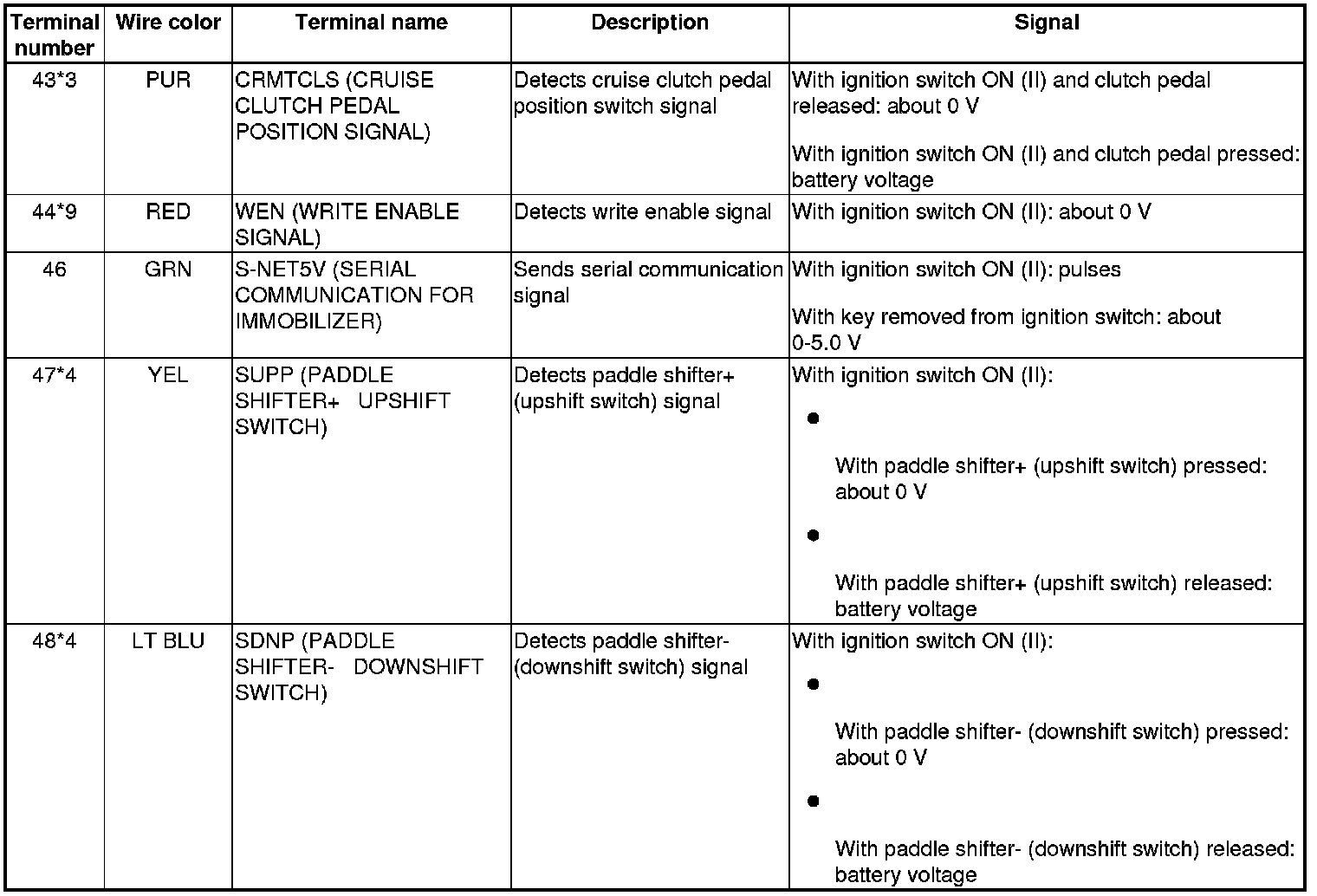

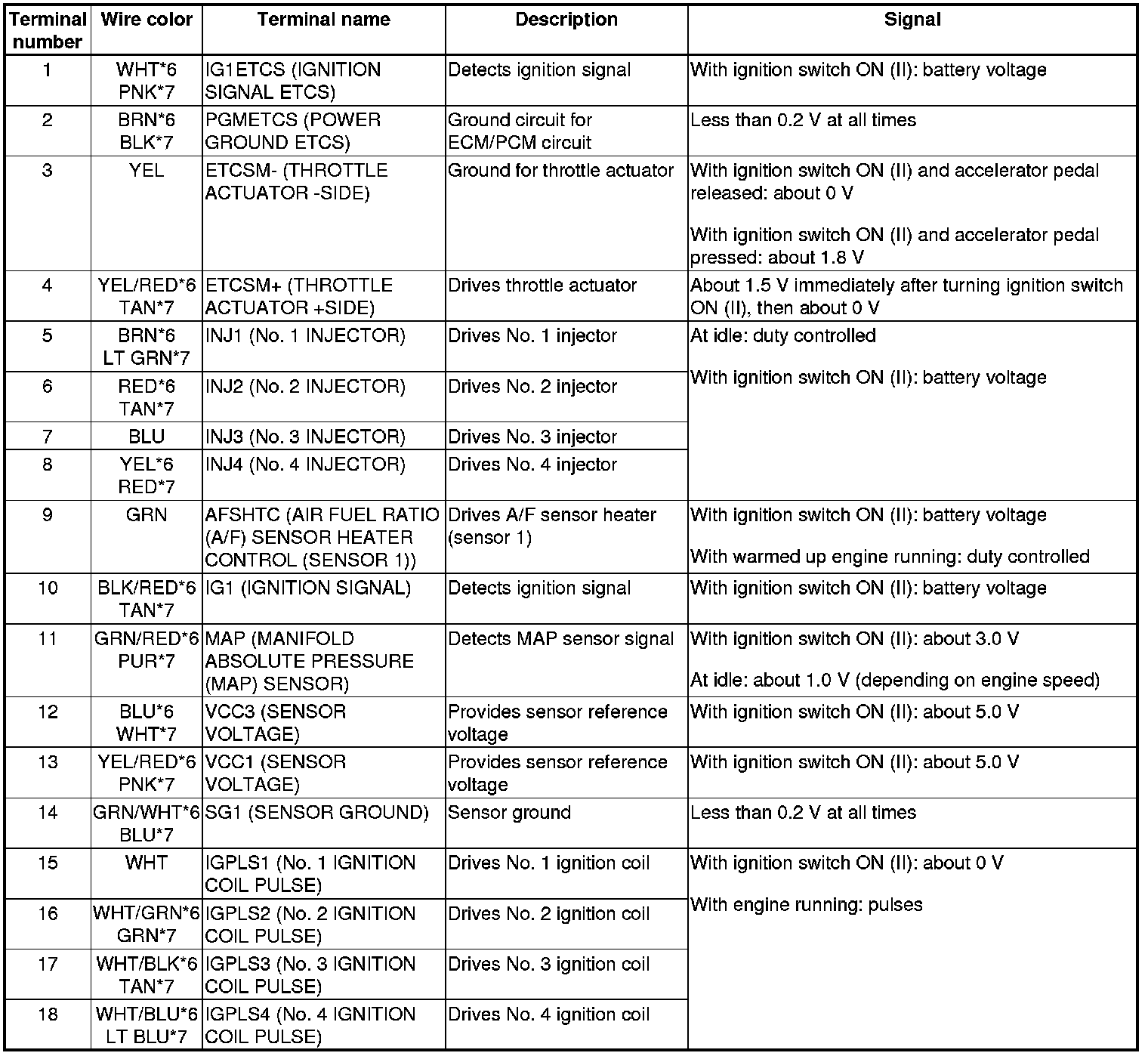

ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)














ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)














ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)

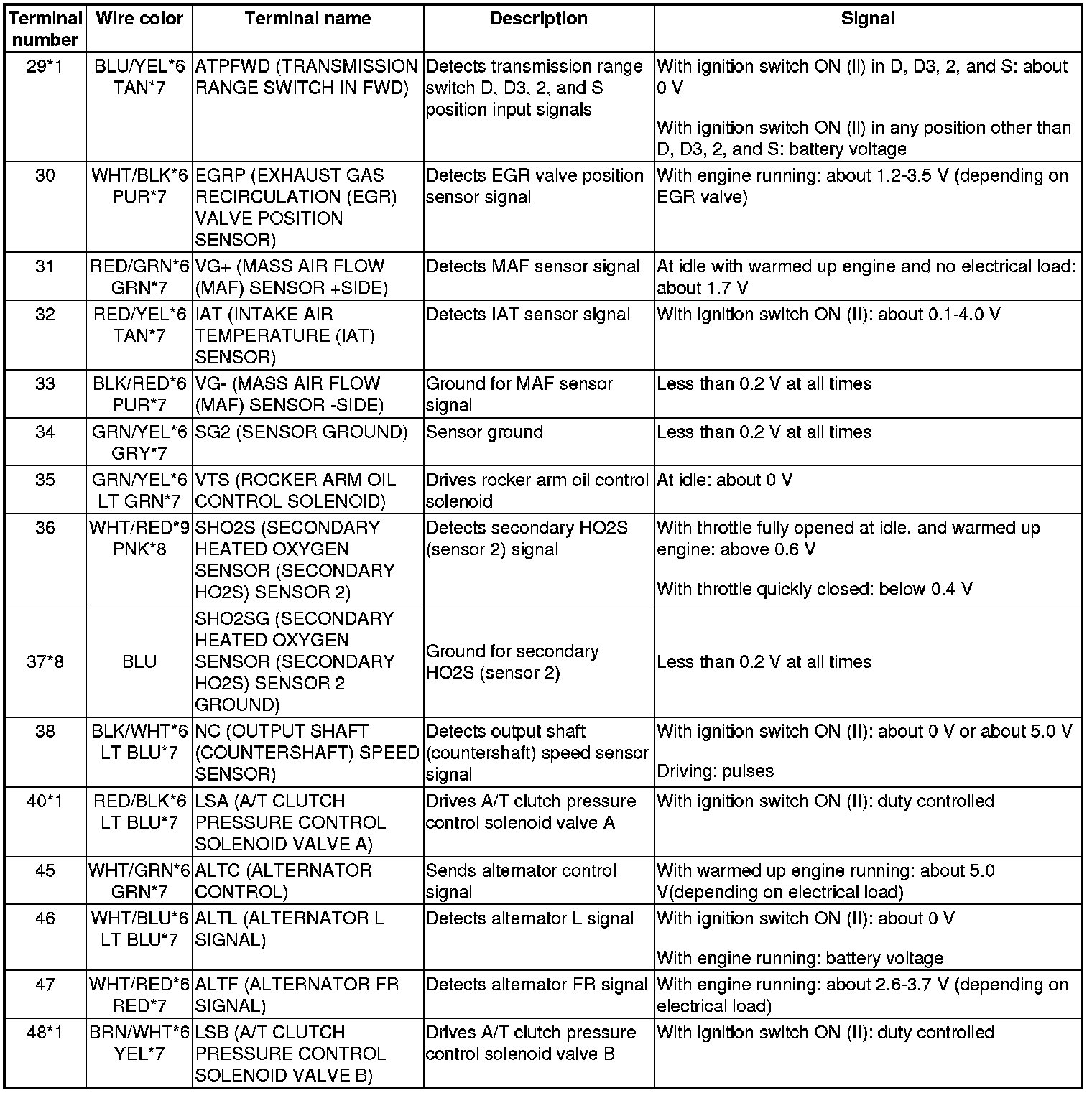

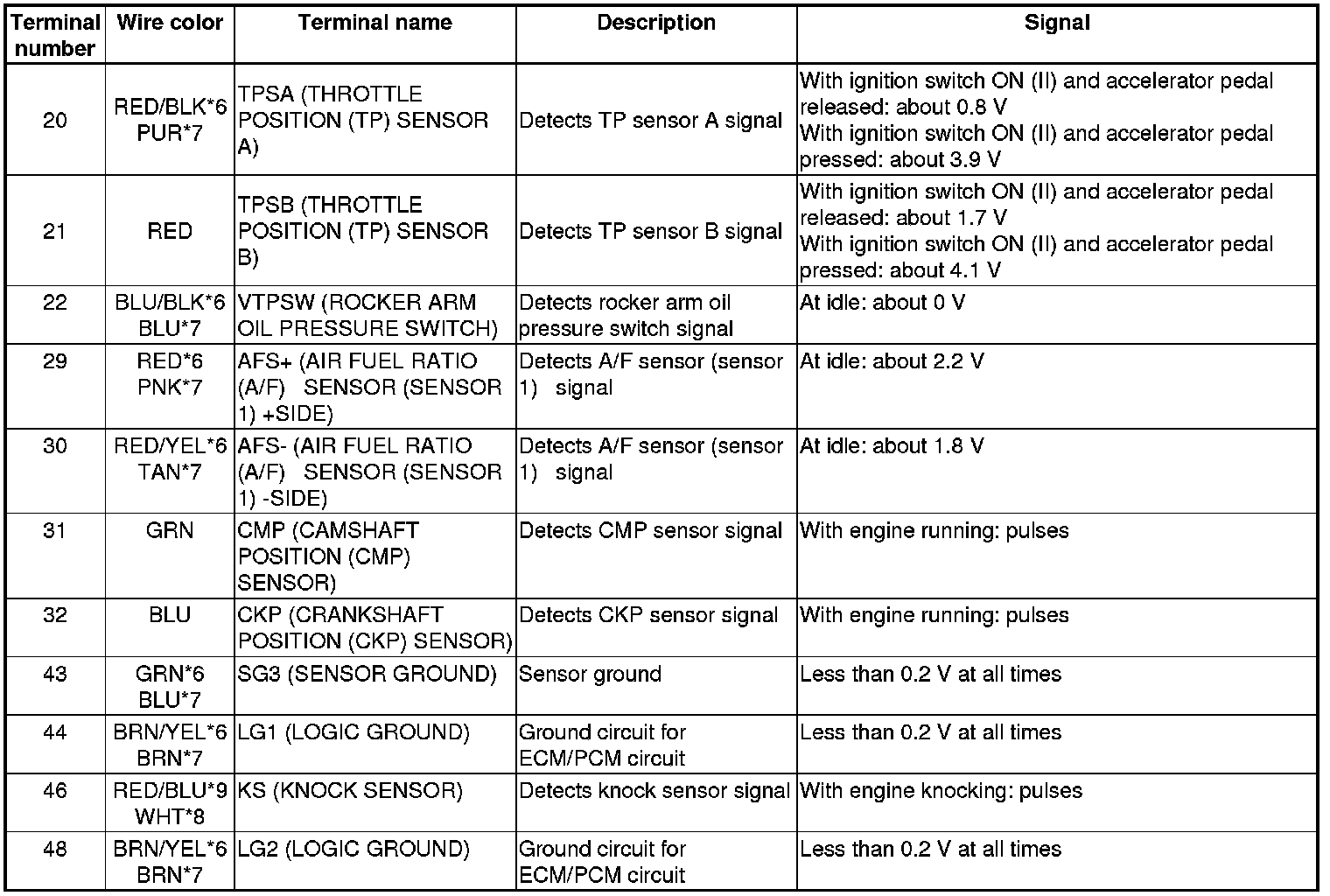

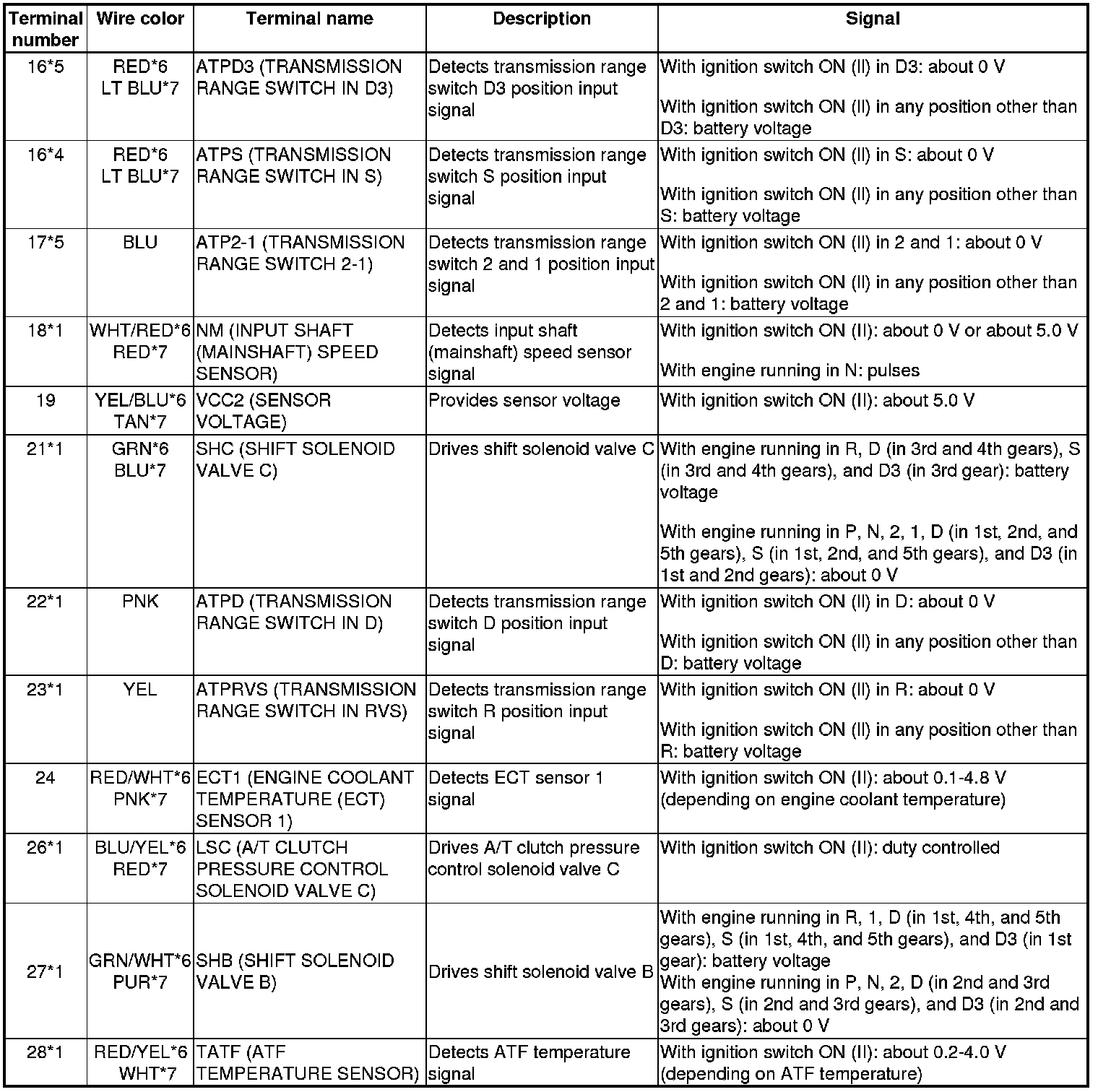

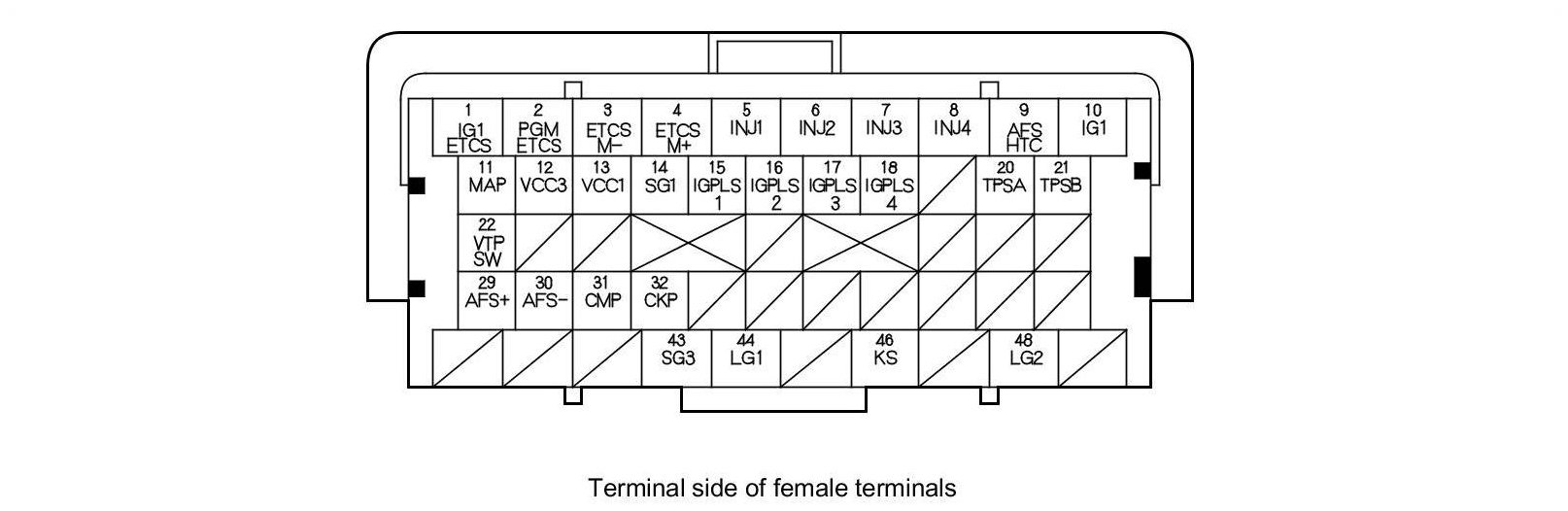

ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (49P)














ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (49P)
