Instrument Panel Control Module: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO value and the maintenance minder information from the gauge control module with the HDS Programming and Relearning.

1. Remove the instrument panel Instrument Panel Removal/Installation.

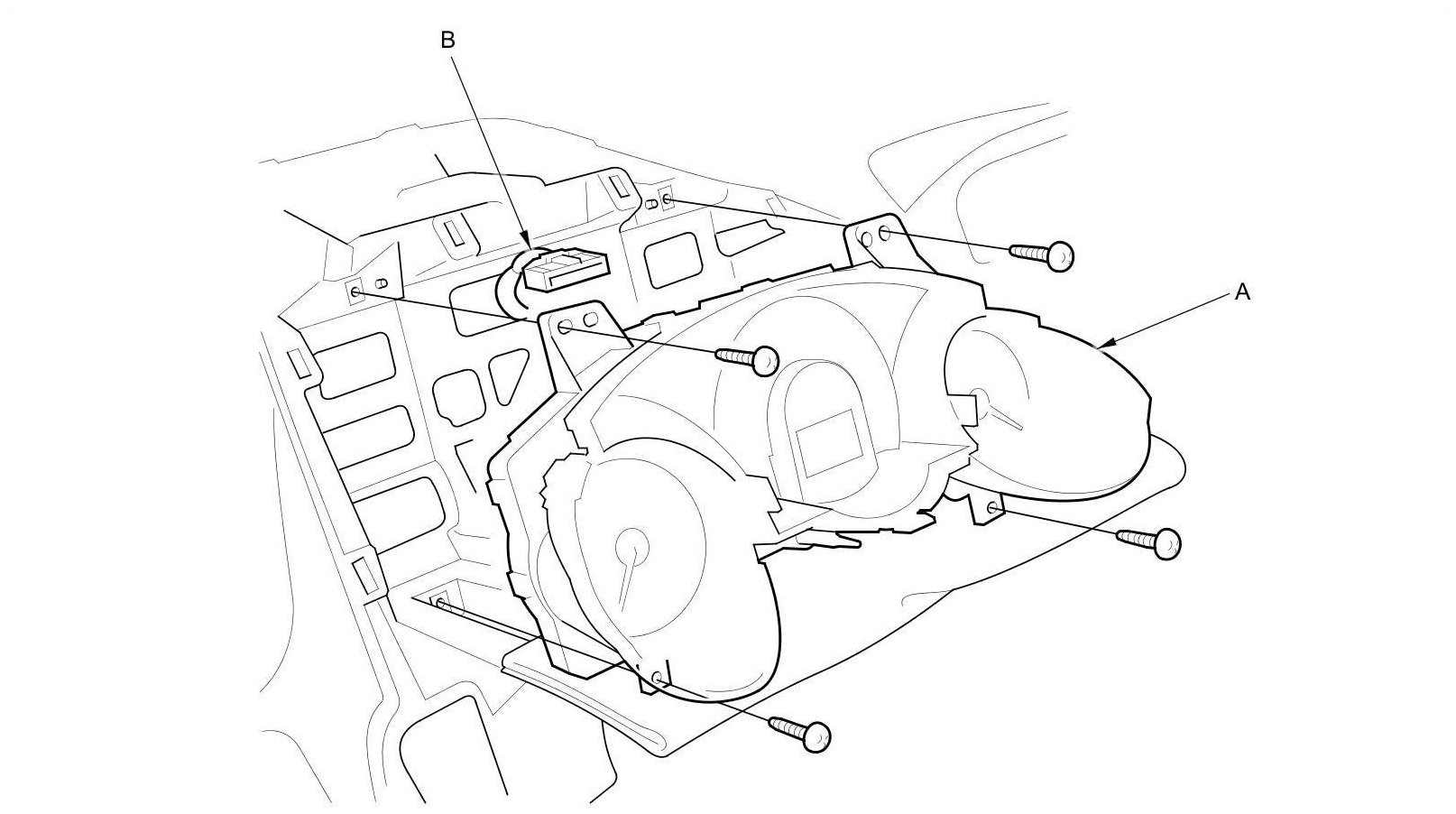

2. Remove the four screws from the gauge control module (A).





3. Disconnect the 32P connector (B) from the gauge control module.

4. Install the gauge control module in the reverse order of removal.

5. Write the ODO value and maintenance minder information to the new gauge control module Programming and Relearning.
