Gateway Function

The gauge control module acts as a gateway to allow both systems to share information. The gauge control module translates and relays the information from B-CAN to F-CAN and from F-CAN to B-CAN.

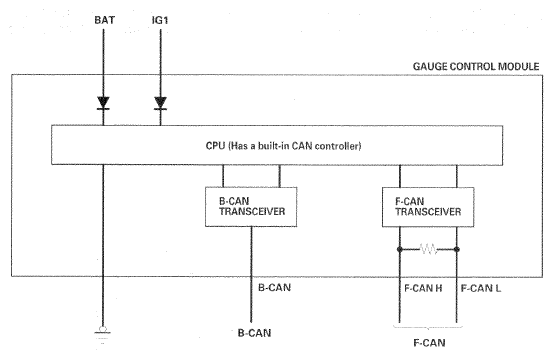

Fig 1: Gauge Control Module Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
