Security Hood Switch Test
- Open the hood.

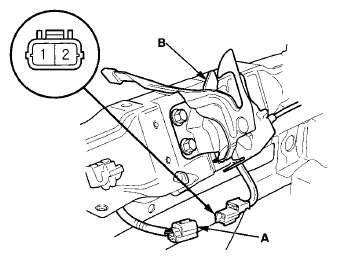

- Disconnect the 2P connector (A) from the security hood switch (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Check for continuity between the terminals.
- There should be continuity between the terminals No. 1 and No. 2 when the hood is opened (lever released).
- There should be no continuity between the terminals No. 1 and No. 2 when the hood is closed (lever pushed down).
- If the continuity is not as specified, the switch is faulty; replace the hood latch (see
HOOD LATCH REPLACEMENT
).
