Ignition Switch Replacement

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Do the 12 volt battery terminal disconnection procedure, (see USING THE GR8 BATTERY DIAGNOSTIC STATION )
Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the ignition switch (B).

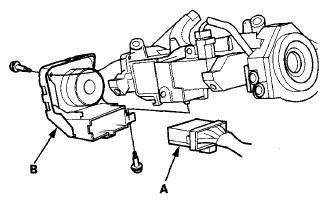

Fig 1: Identifying Ignition Switch And 7P Connector With Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the ignition switch.
Install the parts in the reverse order of removal.
Do the 12 volt battery terminal reconnection procedure, (see RECONNECTION )
