Key Interlock Solenoid Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
Disconnect the steering lock 6P connector (A).

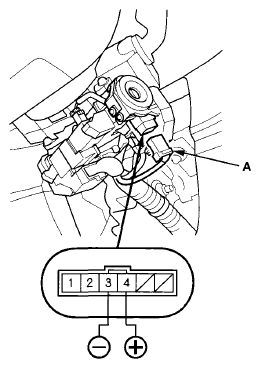

Fig 1: Identifying Steering Lock 6P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert the ignition key in the key cylinder, then turn the ignition key to ACCESSERY (I).
Connect the positive battery terminal to steering lock 6P connector terminal No. 4, and connect the negative battery terminal to terminal No. 3. Check that the ignition key cannot be turned to LOCK (0). Release the battery terminals, and check that the key can be turned to the LOCK (0) position and removed from the cylinder.
If the key interlock solenoid does not work as specified, replace the steering lock (see CHECK OF LOCK LEVER FORCE ).
