Antenna Terminal Base Replacement

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program, 888-424-6857

NOTE:

Take care not to scratch the body or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the antenna terminal cover, (see step 3)
Disconnect the hatch ground connector (B).

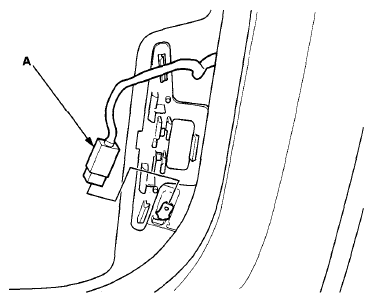

Fig 1: Identifying Hatch Ground Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the antenna terminal base (A).
1. While carefully lifting the antenna terminal base with the appropriate trim tool, insert the trim tool into the edge (B) between the glass and the antenna terminal base.
2. Use the trim tool to gently pry the antenna terminal base up partially to release the adhesive tape, then pull the antenna terminal base up to release the antenna terminal base.

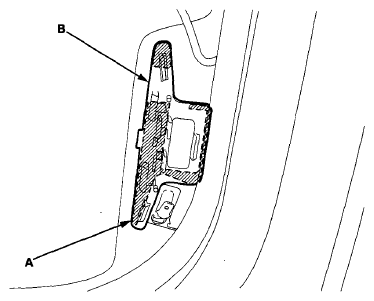

  Fig 2: Identifying Antenna Terminal Base And Edge
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the antenna terminal base in the reverse order of removal, and note these items:
- Push adhesive areas into place securely.
- Make sure each connector is plugged in properly.
