Driver's Power Window Motor Test

Motor Test

1. Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
2. Test the motor in each direction by connecting battery power and ground to the power window master switch 22P connector according to the table.

   Terminal	10	9
   Direction
   UP	(+)	(-)
   DOWN	(-)	(+)

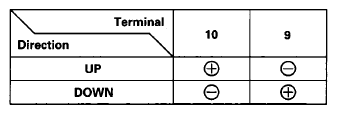

   Fig 1: Power Window Master Switch 22P Connector Terminals Chart

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   Fig 2: Identifying Power Window Master Switch 22P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test (see POWER WINDOW MASTER SWITCH INPUT TEST ).
4. Disconnect the 6P connector (A) from the driver's power window motor (B).
   Fig 3: Identifying Driver's Power Window Motor And 6P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check for continuity between the power window master switch 22P connector terminals and the driver's power window motor 6P connector terminals as shown. There should be continuity.

   Power window master switch 22P connector	Driver's power window motor 6P connector
   9 (PNK)	4 (PNK)
   10 (LT BLU)	1 (LT BLU)

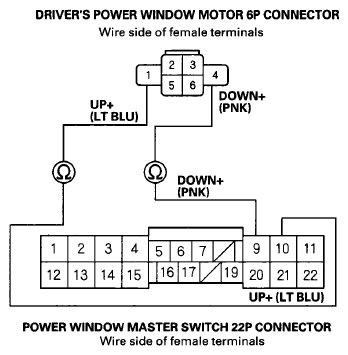

   Fig 4: Checking Continuity Between Power Window Master Switch 22P Connector Terminals And Driver's Power Window Motor 6P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. If the wire harness is OK, replace the driver's power window motor (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).

   Pulser Test

7. Do the power window master switch input test for terminals No. 5, No. 6, No. 7 and No. 16 (see POWER WINDOW MASTER SWITCH INPUT TEST ).
