Passenger's Power Window Switch Replacement

NOTE: The illustration shows the front passenger's power window switch.

Remove the armrest trim:
- Front passenger's (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Rear passenger's (see REAR DOOR PANEL REMOVAL/INSTALLATION )
Remove the switch panel from the door panel.
Disconnect the 8P connector (A) from the passenger's power window switch (B).

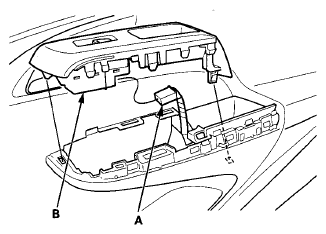

Fig 1: Identifying Passenger's Power Window Switch And 8P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four screws and the switch (A).

Fig 2: Identifying Passenger's Power Window Switch And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the passenger's power window switch in the reverse order of removal.
