Passenger's Power Window Switch Test

Remove the passenger's power window switch (see PASSENGER'S POWER WINDOW SWITCH REPLACEMENT ).
Disconnect the 8P connector (A) from the passenger's power window switch (B).
NOTE: The illustration shows the front passenger's switch.

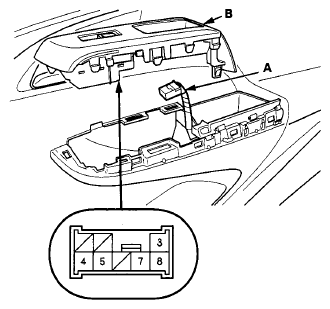

Fig 1: Identifying Front Passenger's Power Window Switch 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each position according to the tables.

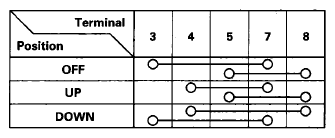

Fig 2: Front Passenger's Power Window Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect battery power to terminal No. 4 and ground terminal No. 7 (or No. 8). The switch light should come on.
If the continuity is not as specified, replace the switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
