Power Window Master Switch Input Test

NOTE:
  • The power window control unit is built into the power window master switch.
  • Before testing, check the No. 1 (7.5 A), No. 3 (20 A), No. 17 (20 A), No. 18 (20 A), No. 19 (20 A), No. 22 (7.5 A), and No. 60 (IGN) (50 A) fuses in the under-dash fuse/relay box.
  1. Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
  2. Disconnect the 22P connector (A) from the power window master switch (B).

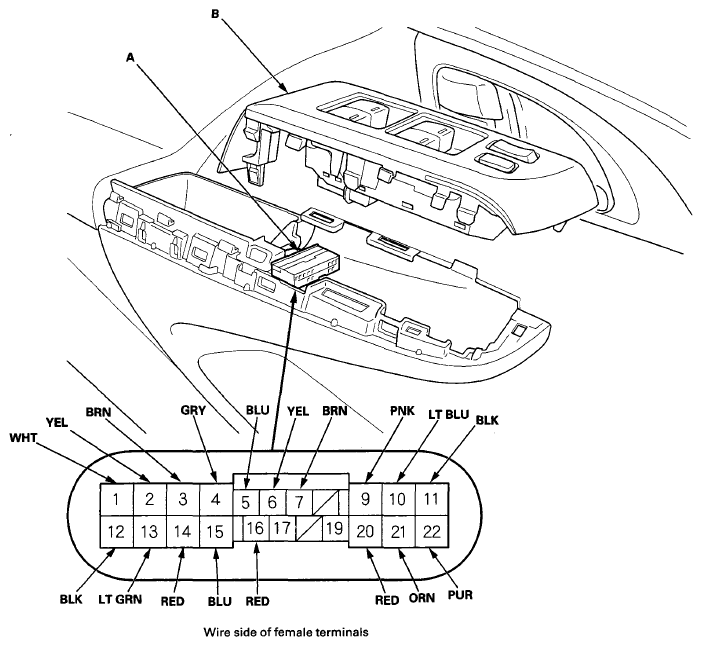

    Fig 1: Identifying Power Window Master Switch 22P Connector Terminals
    G08094716Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 4.
  4. With the connector still disconnected, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 5.
      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      3 BRN Ignition switch ON (II) Measure the voltage between terminals No. 3 and No. 12: There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • Faulty power window relay (P/W)
      • Faulty MICU
      • An open or high resistance in the wire
      • Poor ground (G501)
      2 YEL Ignition switch ON (II) Connect terminals No. 3 and No. 2, and terminals No. 1 and No. 12 momentarily with jumper wires: The front passenger's window should open.
      • Faulty under-dash fuse/relay box
      • Faulty front passenger's power window motor
      • Faulty front passenger's power window switch
      • Poor ground (G501)
      • An open or high resistance in the wire
      1 WHT Ignition switch ON (II) Connect terminals No. 3 and No. 1, and terminals No. 2 and No. 12 momentarily with jumper wires: The front passenger's window should close.
      14 RED Ignition switch ON (II) Connect terminals No. 15 and No. 14, and terminals No. 13 and No. 12 momentarily with jumper wires: The right rear window should open.
      • Faulty under-dash fuse/relay box
      • Faulty right rear power window motor
      • Faulty right rear power window switch
      • Poor ground (G501)
      • An open or high resistance in the wire
      13 LT GRN Ignition switch ON (II) Connect terminals No. 15 and No. 13, and terminals No. 14 and No. 12 momentarily with jumper wires: The right rear window should close.
      21 ORN Ignition switch ON (II) Connect terminals No. 20 and No. 21, and terminals No. 22 and No. 12 momentarily with jumper wires: The left rear window should open.
      • Faulty under-dash fuse/relay box
      • Faulty left rear power window motor
      • Faulty left rear power window switch
      • Poor ground (G501)
      • An open or high resistance in the wire
      22 PUR Ignition switch ON (II) Connect terminals No. 20 and No. 22, and terminals No. 21 and No. 12 momentarily with jumper wires: The left rear window should close.
      9 PNK Connect terminals No. 4 and No. 9, and terminals No. 10 and No. 11 momentarily with jumper wires Check driver's power window motor operation: The driver's window should open.
      • Faulty under-dash fuse/relay box
      • Faulty driver's power window motor
      • Poor ground (G501)
      • An open or high resistance in the wire
      10 LT BLU Connect terminals No. 4 and No. 10, and terminals No. 9 and No. 11 momentarily with jumper wires Check driver's power window motor operation: The driver's window should close.
  5. Reconnect the connector to the power window master switch. Turn the ignition switch to ON (II), and do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty; replace the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).
      NOTE: After replacing the power window master switch, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      7 BRN Ignition switch ON (II) Measure the voltage to ground: There should be less than 0.2 V.
      • Poor ground(G501)
      • Faulty power window master switch
      • An open or high resistance in the wire
      16 RED Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Faulty power window master switch
      • A short to ground in the wire
      5 BLU Ignition switch ON (II), and driver's power window switch moving up or down Measure the voltage between terminals No. 5 and No. 7: An analog voltmeter should alternate between 0 V and about 5 V (a digital voltmeter should read about 2.5 V while the window moves).
      • Faulty power window master switch
      • Faulty driver's power window motor
      • An open or high resistance in the wire
      • A short to ground in the wire
      6 YEL Ignition switch ON (II), and driver's power window switch moving up or down Measure the voltage between terminals No. 6 and No. 7: An analog voltmeter should alternate between 0 V and about 5 V (a digital voltmeter should read about 2.5 V while the window moves).
      4 GRY Under all conditions Measure the voltage to ground: There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • An open or high resistance in the wire
      15 BLU Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • Faulty power window relay (P/W)
      • Faulty MICU
      • An open or high resistance in the wire
      20 RED Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • Faulty power window relay (P/W)
      • Faulty MICU
      • An open or high resistance in the wire
      11 BLK Under all conditions Measure the voltage to ground: There should be less than 0.2 V.
      • Poor ground (G501)
      • An open or high resistance in the wire
