System Indicator: Notes

This system has five indicators:

• ABS indicator (A)
• Brake system indicator (red) (B)
• VSA indicator (C)
• VSA OFF indicator (D)
• Brake system indicator (amber) (E)

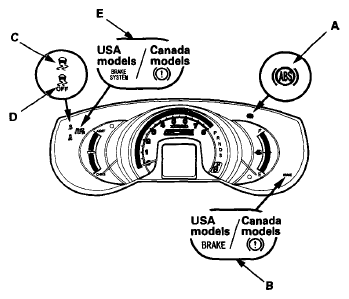

  Fig 1: Identifying ABS Indicator, Brake System Indicator, VSA Indicator, VSA Off Indicator And Brake System Indicator

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), then goes off.

When the system detects a problem, a DTC will set and, depending upon the failure, the VSA modulator-control unit determines which indicator(s) will turn on. If the problem goes away (system returns to normal), the indicator(s) will be controlled in the following way depending upon the DTC that was set:

• The indicator(s) will come on and stay on when the ignition switch is ON (II).
• The indicator(s) will automatically go off.
• The indicator(s) will go off after the vehicle is driven.
