EBD (Electronic Brake Distribution) Features

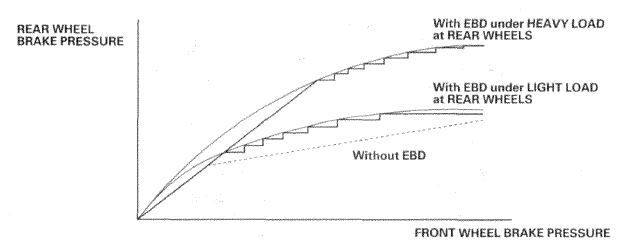

The EBD feature helps control vehicle braking by adjusting the rear brake force in accordance with the rear wheel load before the ABS operates, Based on the wheel speed sensor signals, the control unit uses the modulator to control the rear brakes individually. When the rear wheel speed is less than the front wheel speed, the VSA modulator-control unit retains the current rear brake fluid pressure by closing the inlet valve in the modulator. As the rear wheel speed increases and approaches the front wheel speed, the VSA modulator-control unit increases the rear brake fluid pressure by momentarily opening the inlet valve. This whole process is repeated very rapidly. While this is happening, kickback may be felt at the brake pedal, you may also hear a muted buzzing sound from the VSA modulator-control unit. This is normal.
