VSA Modulator-Control Unit Inputs and Outputs for 47P Connector

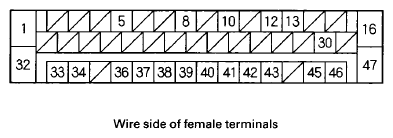

Fig 1: Identifying VSA Modulator-Control Unit Inputs And Outputs For 47P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Terminal number	Wire color	Terminal sign	Description	Signal
1	GRN	MR + B	Power source for the motor relay	Battery voltage (about 12 V) at all times
5	PUR	SVCC	Power source for the steering angle sensor	--
8	PUR	IG1	Power source for activating the system	With ignition switch ON (II): battery voltage (about 12 V)
10	RED	K-LINE	Communication with HDS	Pulse voltage (digital signal)
12	WHT	CANH	F-CAN communication circuit	--
13	RED	CANL	F-CAN communication circuit
16	BLK	GND	Ground for the VSA modulator-control unit	Continuity to ground
30	LT BLU	STR-Z	Detects steering angle sensor signal	--
32	WHT	FSR +B	Power source for the fail-safe relay	Battery voltage (about 12 V) at all times
33	BLU	FR-GND	Detects right-front wheel sensor signal	--
34	YEL	FR +B	Detects right-front wheel sensor signal
36	PNK	RL +B	Detects left-rear wheel sensor signal	--
37	GRY	RL-GND	Detects left-rear wheel sensor signal
38	GRN	STR-B	Detects steering angle sensor signal
39	ORN	WEN	Detects write enable signal
40	PNK	SGND	Ground for the steering angle sensor
41	GRY	STR-A	Detects steering angle sensor signal
42	WHT	RR-GND	Detects right-rear wheel sensor signal
43	GRN	RR +B	Detects right-rear wheel sensor signal
45	LT GRN	FL +B	Detects left-front wheel sensor signal
46	BRN	FL-GND	Detects left-front wheel sensor signal
47	BLK	MR-GND	Ground for the pump motor	Continuity to ground
