Wheel Speed Sensor Replacement: Rear

  1. Turn the ignition switch to LOCK (0).
  2. Remove the rear wheels.

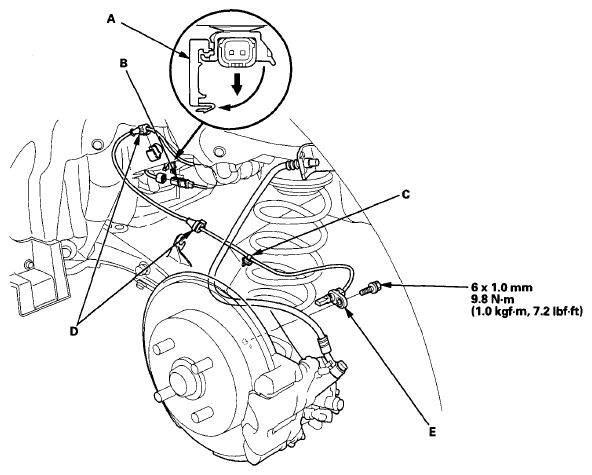

  3. Release the connector holding clamps (A), then disconnect the wheel sensor connector (B).
    Fig 1: Connector Holding Clamps, Wheel Sensor Connector, Clip, Wire Guide Rubbers, Bolt And Wheel Speed Sensor With Torque Specifications
    G08093877Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the clip (C) and the wire guide rubbers (D).
  5. Remove the bolt and the wheel speed sensor (E).
  6. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure there is no debris in the sensor mounting hole.
