Power Relay Test: Notes
Special Tools Required
- Relay Puller 07AAC-000A1A0 or 07AAC-000A2A1
- Relay Socket Extension (4 Pin) 07AGK-000A1A0
- Relay Socket Extension (5 Pin) 07AGK-000A2A0
Use this chart to identify the type of relay, then do the test listed for it.
| Relay | Test |
|---|---|
| A/C compressor clutch relay | Normally-open four-terminal type |
| A/C condenser fan relay | |
| A/F sensor relay | |
| Blower motor relay | |
| ETCS control relay | |
| Ignition coil relay | |
| Lighting relay | |
| Motor control module (MCM) relay 1 | |
| Motor control module (MCM) relay 2 | |
| PGM-FI main relay 1 | |
| PGM-FI main relay 2 | |
| Power window relay (P/W) | |
| Radiator fan relay | |
| Rear window defogger relay | |
| Starter cut relay | |
| Driver's door unlock relay | Five-terminal type |
| Fan control relay | |
| Hatch release actuator relay |
NOTE:

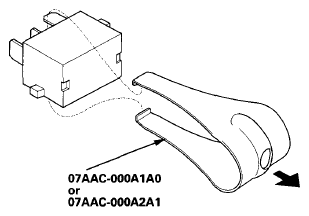

Using the relay puller, carefully remove the relay from the under-dash fuse/relay box. Do not use pliers. Pliers will damage the relay.
