Torque Rod Bracket Replacement

  1. Raise the vehicle on the lift.
  2. Support the transmission with a transmission jack and a wood block under the transmission.
  3. Remove the torque rod (A).
    NOTE: Make sure the tab (B) on the bolt head aligned with the guide (C) on the front subframe.

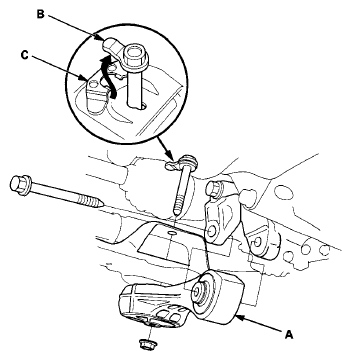

    Fig 1: Removing Torque Rod
    G08091828Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the torque rod bracket (A).

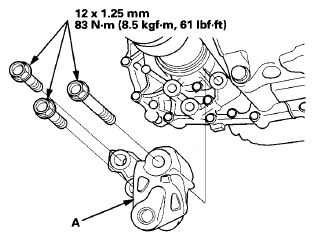

    Fig 2: Torque Rod Bracket And Bolts With Torque Specifications
    G08091829Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the torque rod bracket.
  6. Install the torque rod (A).
    NOTE: Be sure to install the torque rod with the "UP" mark facing up.

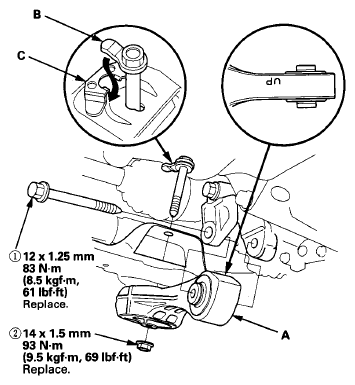

    Fig 3: Installing Torque Rod With Torque Specifications
    G08091830Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the bolt with the tab (B) on the bolt head aligned with the guide (C) on the front subframe, then loosely install the new torque rod mounting bolt and nut.
  8. Remove the transmission jack and wood block from under the transmission.
  9. Tighten the torque rod mounting bolt and nut in the numbered sequence shown.
  10. Lower the vehicle on the lift.
