Block Cover Removal and Installation

  1. Remove the block cover (A).

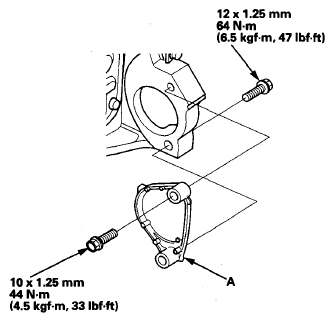

    Fig 1: Block Cover And Mounting Bolts With Torque Specifications
    G08092025Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the block cover in the reverse order of removal.
