Piston, Pin, and Connecting Rod Replacement: Inspection

NOTE: Inspect the piston, the piston pin, and the connecting rod when they are at room temperature.

Measure the diameter of the piston pin.
Piston Pin Diameter

Standard (New): 17.996-18.000 mm (0.70850-0.70866 in)

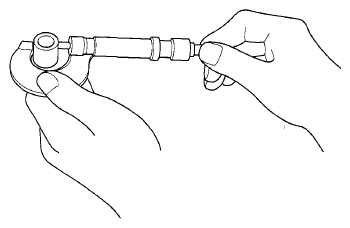

Fig 1: Measuring Piston Pin Diameter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Zero the dial indicator to the piston pin diameter.

Fig 2: Setting Gauge To Zero Reading
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the difference between the piston pin diameter and the piston pin hole diameter in the piston.
Piston Pin-to-Piston Clearance

Standard (New): 0.010-0.017 mm (0.00039-0.00067 in)

Fig 3: Checking Piston Pin-To-Piston Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the piston pin-to-connecting rod clearance.
Piston Pin-to-Connecting Rod Clearance

Standard (New): 0.019-0.036 mm (0.00075-0.00142 in)

Fig 4: Measuring Piston Pin-To-Connecting Rod Clearance
Courtesy of AMERICAN HONDA MOTOR CO., INC.
