DTC P0705: Short in Transmission Range Switch Circuit (Multiple Shift-Position Input): Notes

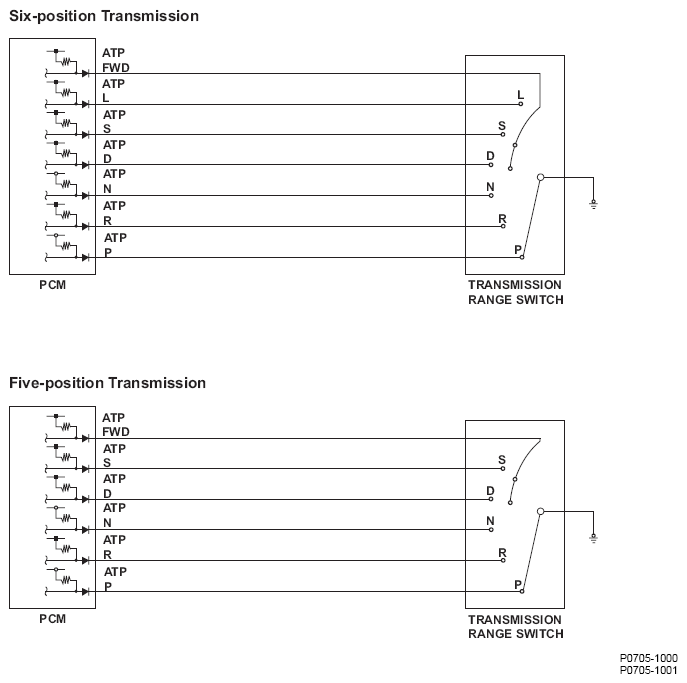

Fig 1: Five And Six Transmission Range Switch - Circuit Diagram

Transmission range switch contact point input matrix:

SIX-POSITION TRANSMISSION

Shift lever position	Input per switch
	P	R	N	D	S	L	FWD
P	O	X	X	X	X	X	X
R	X	O	X	X	X	X	X
N	X	X	O	X	X	X	X
D	X	X	X	O	X	X	O
S	X	X	X	X	O	X	O
L	X	X	X	X	X	O	X

FIVE-POSITION TRANSMISSION

Shift lever position	Input per switch
	P	R	N	D	S	FWD
P	O	X	X	X	X	X
R	X	O	X	X	X	X
N	X	X	O	X	X	X
D	X	X	X	O	X	O
S	X	X	X	X	O	O
O: Closed X: Open
