Driving Pattern

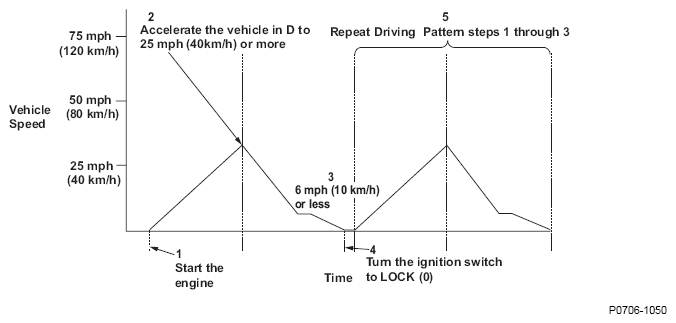

Fig 1: Vehicle Speed Driving Pattern
G06617552
  1. Start the engine.
  2. Accelerate the vehicle in D to 25 mph (40km/h) or more.
  3. Slow down to 6 mph (10 km/h) for several seconds.
  4. Stop the vehicle, and turn the ignition switch to LOCK (0).
  5. Repeat Driving Pattern steps  1 through  3.
    • Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
