DTC P0716: Range/Performance Problem in CVT Input Shaft (Drive Pulley) Speed Sensor Circuit: Notes

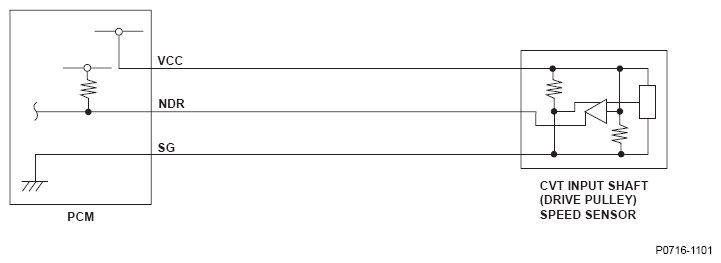

Fig 1: CVT Input Shaft (Drive Pulley) Speed Sensor - Circuit Diagram
G08568533

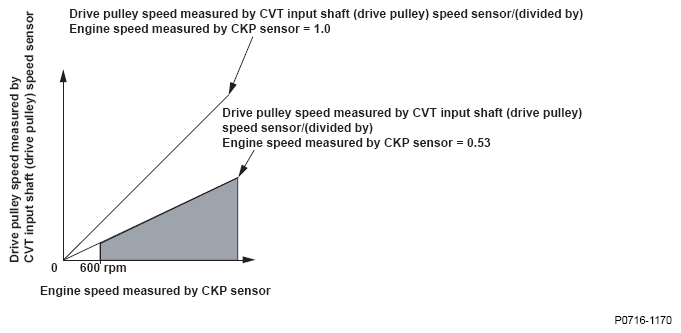

Fig 2: Drive Pulley Speed Versus Engine Speed Graph
G08568534
