DTC P1440 (57): Motor Power Inverter (MPI) Module Output Circuit Malfunction: Notes

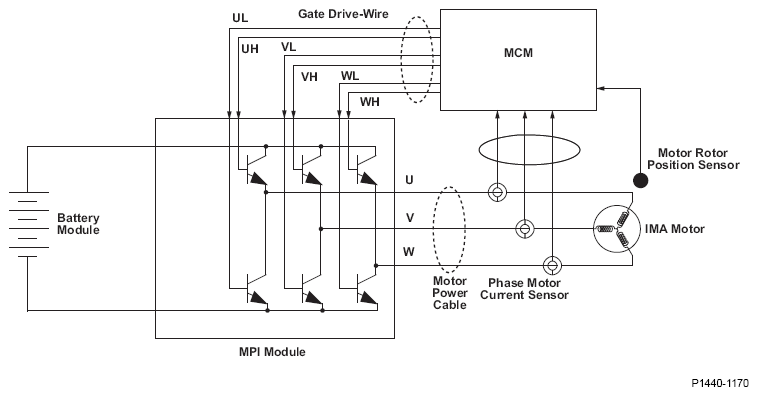

Fig 1: Motor Power Inverter (MPI) Module - Circuit Diagram

Fig. 1

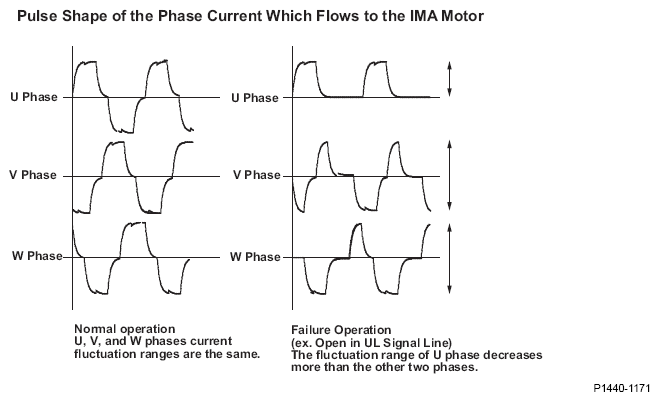

Fig 2: IMA Motor Phase Current Shape Pattern (Normal And Failure Operations)

Fig. 2

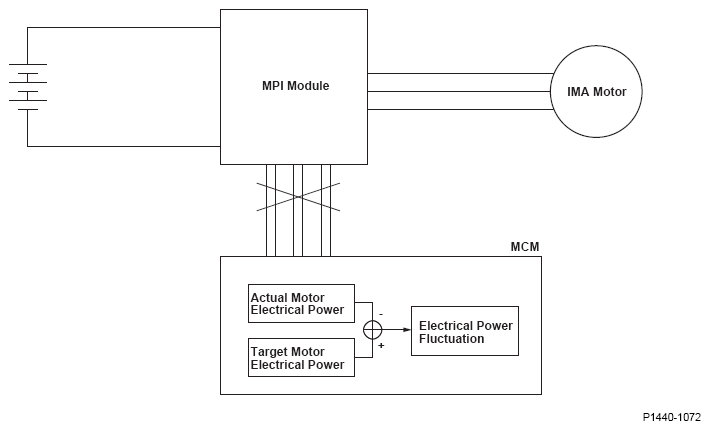

Fig 3: Motor Power Inverter (MPI) Module - Circuit Diagram
