DTC P1574 (68): Battery Module Temperature Signal Circuit Malfunction: Notes

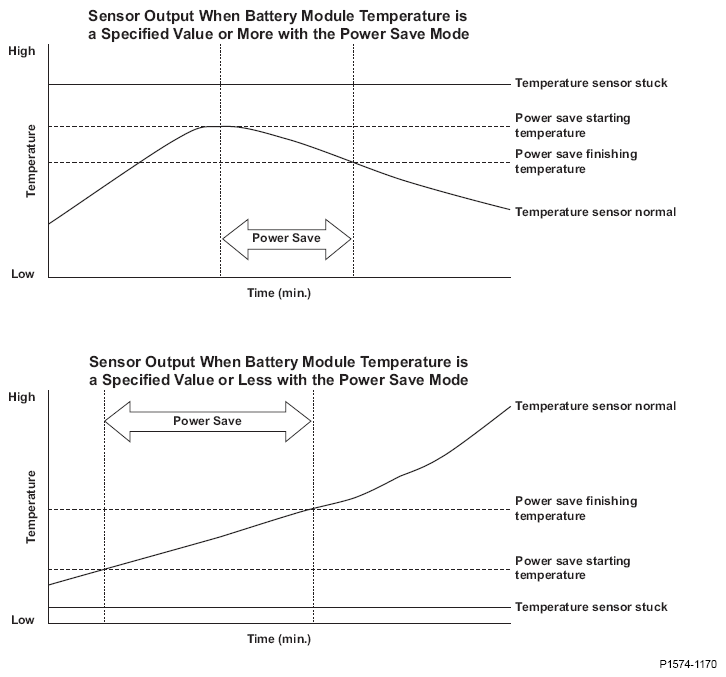

Fig 1: Sensor Output Graph (When Battery Module Temperature More/Less With Power Save Mode)
G08568622
