DTC P15C4 (118): Auto Idle Stop System Malfunction: Notes

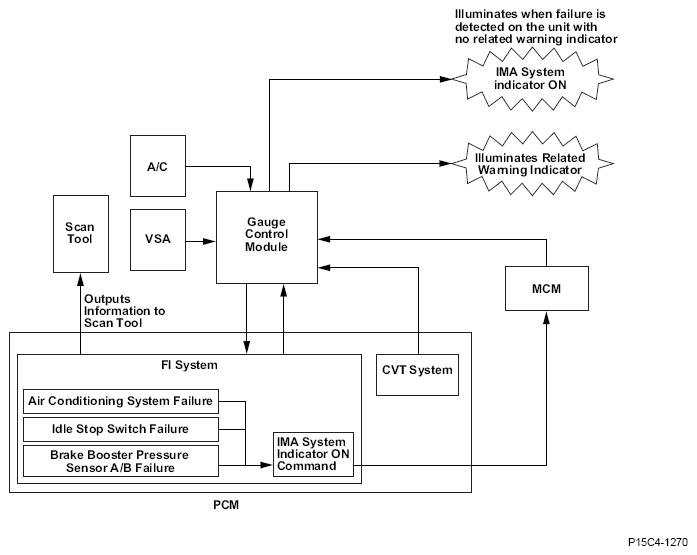

Fig 1: Auto Idle Stop System Operation Diagram

G08568627
