DTC P1659: Electronic Throttle Control System (ETCS) Control Relay OFF Malfunction: Notes

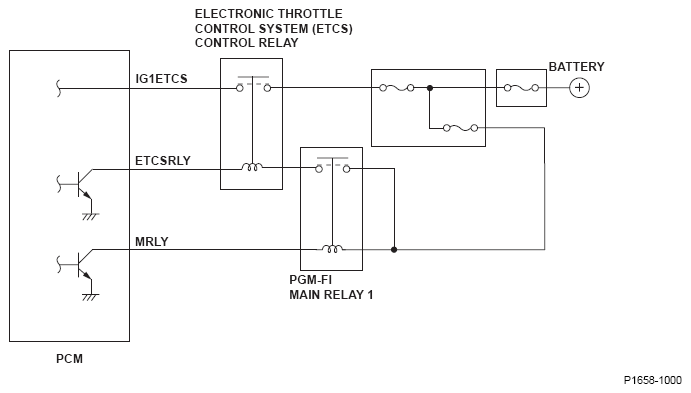

Fig 1: Electronic Throttle Control System (ETCS) - Circuit Diagram
G06617644
