DTC P2118: Throttle Actuator Current Range/Performance Problem: Notes

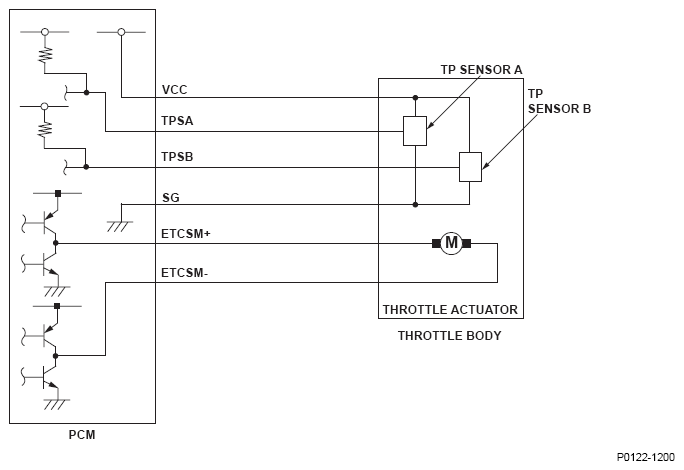

Fig 1: Throttle Actuator Sensor - Circuit Diagram

G08568422
