Under-Floor TWC Removal/Installation

  1. Raise the vehicle on a lift.
  2. Remove secondary HO2S (Sensor 2) (see A/F SENSOR REPLACEMENT ).
  3. Remove the nuts (A) and the bolts (B).

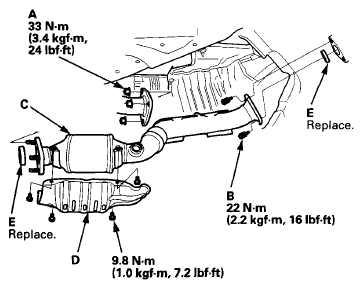

    Fig 1: Under-Floor TWC, Cover, Nuts And Bolts With Torque Specifications
    G08092589Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the under-floor TWC (C).
  5. Remove the cover (D).
  6. Install the parts in the reverse order of removal with new gaskets (E).
