EGR Valve Replacement

  1. Disconnect the EGR valve 5P connector (A).

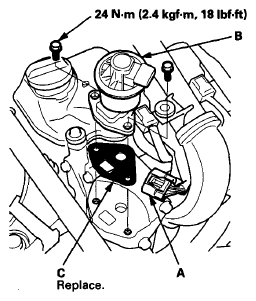

    Fig 1: EGR Valve, 5P Connector And Gasket With Torque Specifications
    G08092608Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the EGR valve (B).
  3. Install the parts in the reverse order of removal with a new gasket (C).
