EVAP Canister Purge Valve Replacement

Disconnect the MAP sensor 3P connector (A) (see KNOCK SENSOR REPLACEMENT ), the MAF sensor/IAT sensor 5P connector (B) (see MAF SENSOR/IAT SENSOR REPLACEMENT ), and the EVAP canister purge valve connector (C), then remove the harness holder (D).

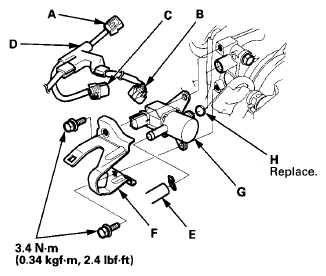

Fig 1: MAP Sensor 3P, EVAP Canister Purge Valve Connectors And EVAP Canister Purge Guard With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the hose (E), then remove the EVAP canister purge guard (F), and the canister purge valve (G).
Install the parts in the reverse order of removal with a new O-ring (H).
