Real-Time Driving Information

Real-time driving information includes the driver's acceleration and braking habits, viewed from a fuel economy standpoint. Based on information received, the ambient meter (background color of the speedometer) changes color: During low fuel economy, the ambient meter is blue; at medium fuel economy, the meter is blue-green; and at high fuel economy, it's green. In addition, the Eco drive bar on the MID changes from a long bar (during low fuel economy driving) to a short bar (during high fuel economy driving).

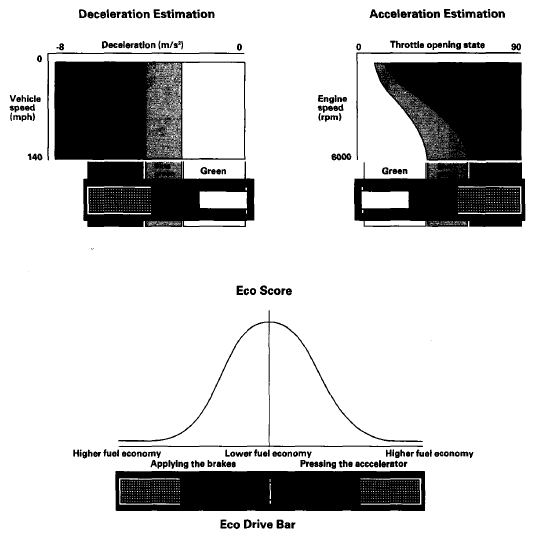

Fig 1: Screen Display - Real-Time Driving Information Graphs
G08092207Courtesy of AMERICAN HONDA MOTOR CO., INC.
