ETCS (Electronic Throttle Control System)

To decrease fuel use when the accelerator is pressed quickly, ETCS keeps the throttle response smooth.

When the accelerator is pressed past a certain point, the throttle assumes normal response to maintain acceleration performance.

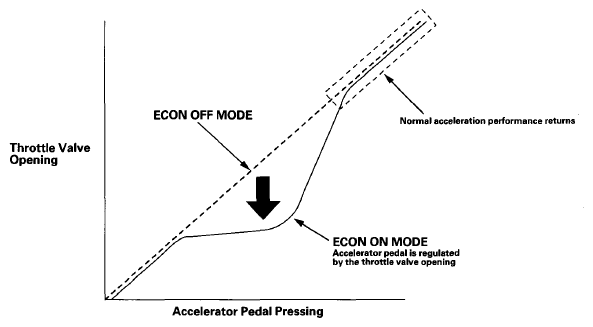

Fig 1: Throttle Valve Opening Vs Accelerator Pedal Pressing Graph
G08092205Courtesy of AMERICAN HONDA MOTOR CO., INC.
