PCM Circuit Diagram

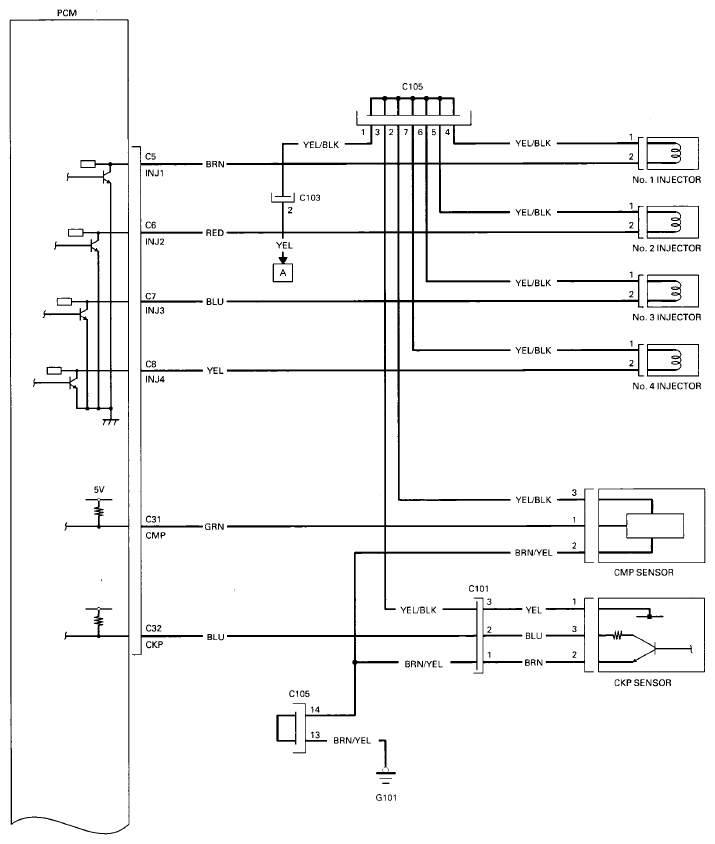

Fig 1: PCM Circuit Diagram (1 Of 15)

G08092162

Courtesy of AMERICAN HONDA MOTOR CO., INC.

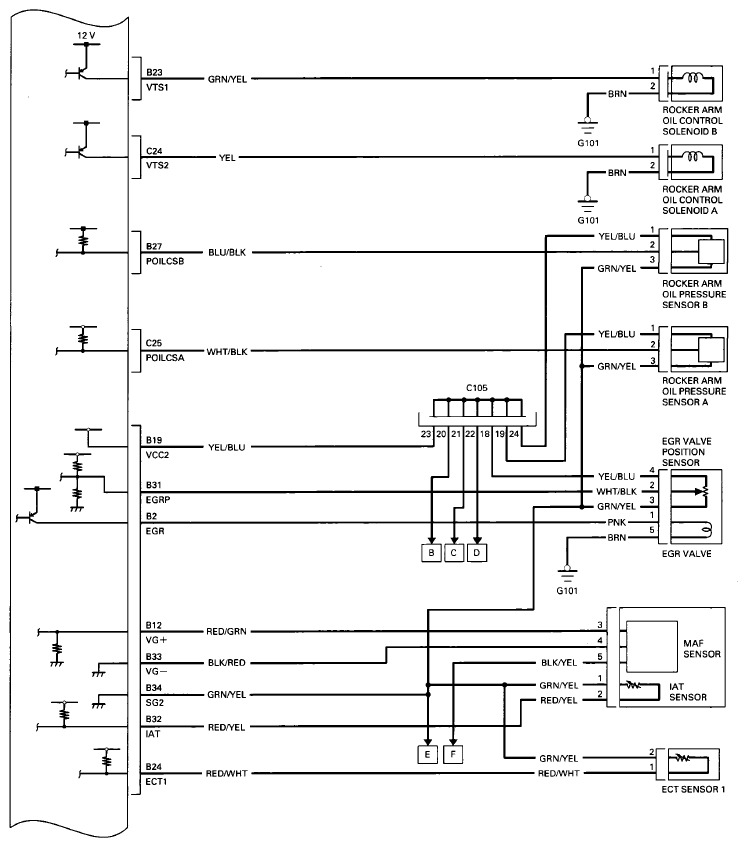

Fig 2: PCM Circuit Diagram (2 Of 15)

G08092163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

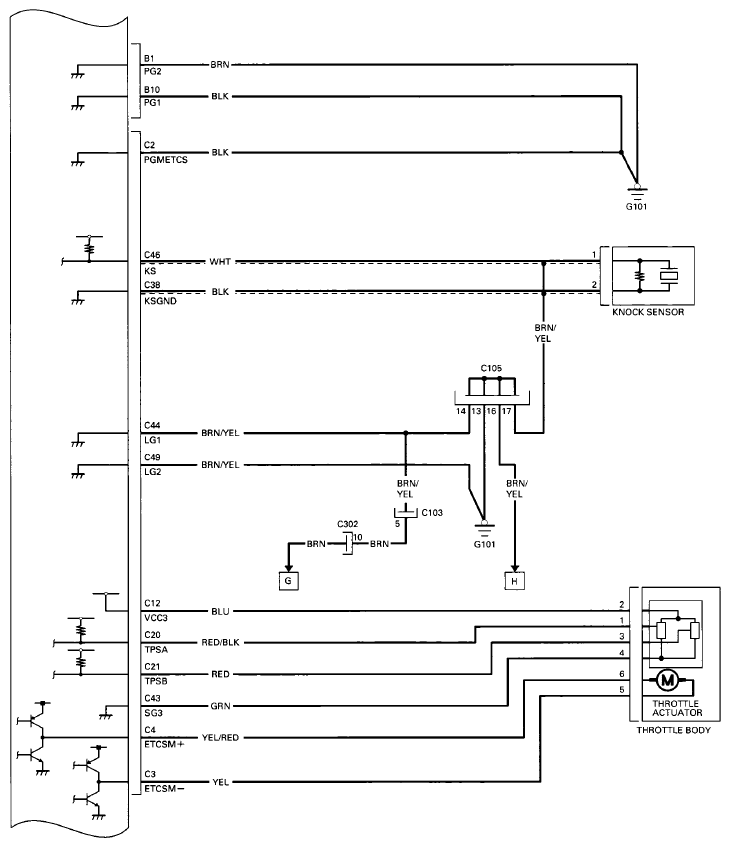

Fig 3: PCM Circuit Diagram (3 Of 15)

G08092164

Courtesy of AMERICAN HONDA MOTOR CO., INC.

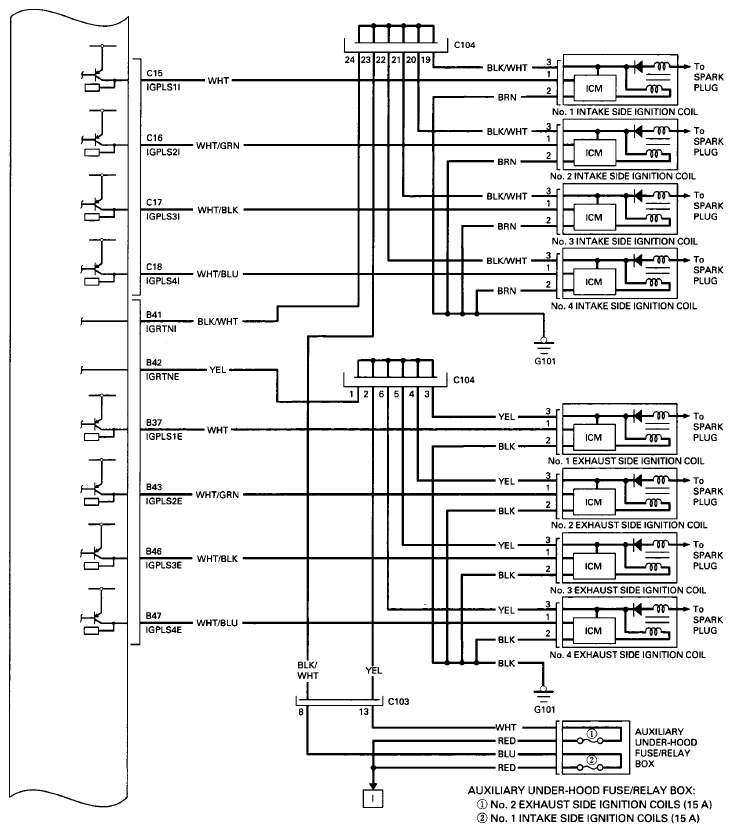

Fig 4: PCM Circuit Diagram (4 Of 15)

G08092165

Courtesy of AMERICAN HONDA MOTOR CO., INC.

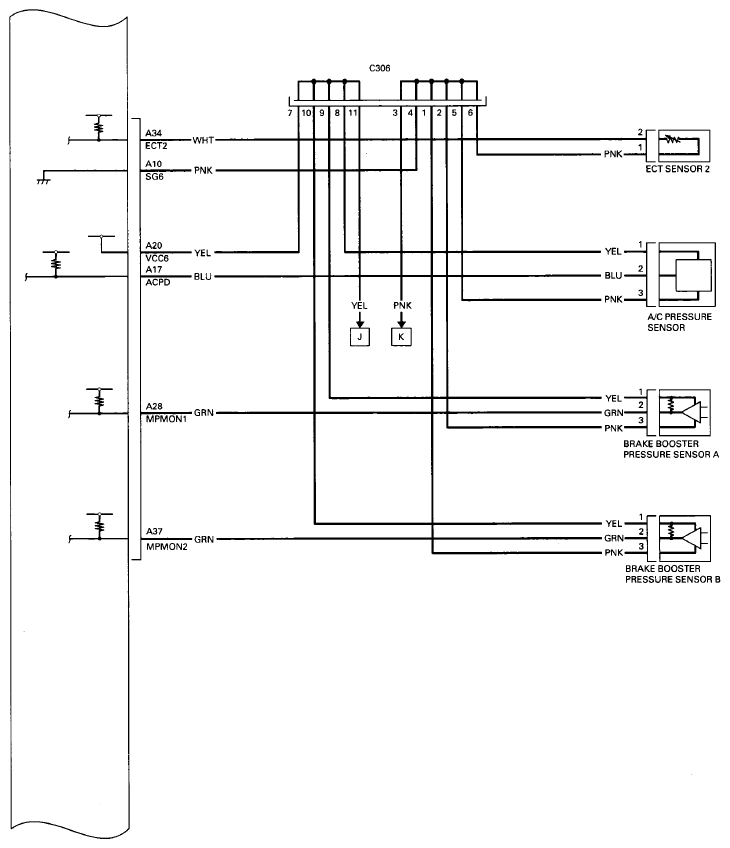

Fig 5: PCM Circuit Diagram (5 Of 15)

G08092166

Courtesy of AMERICAN HONDA MOTOR CO., INC.

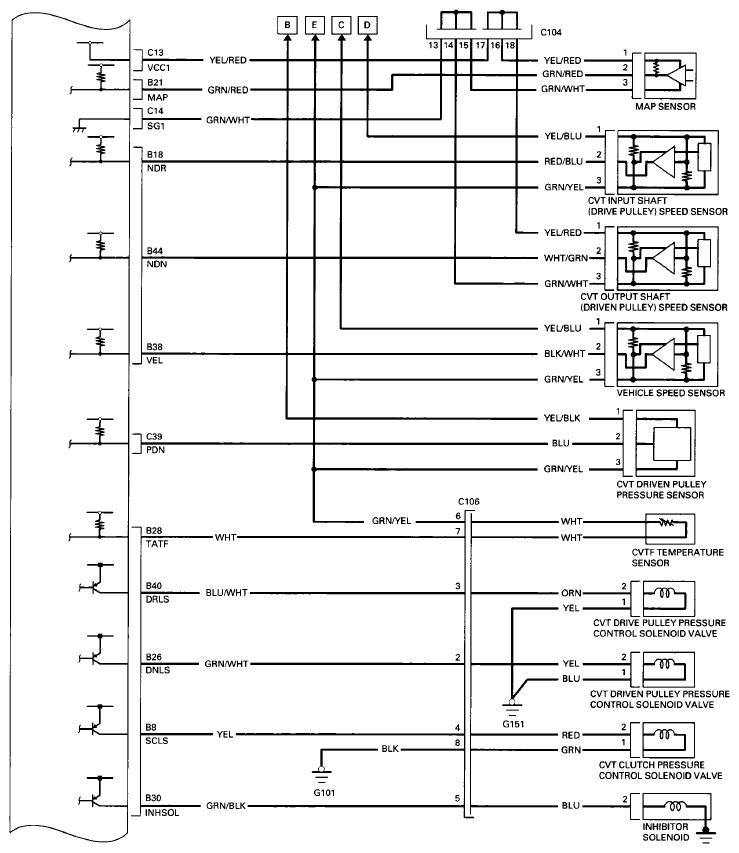

Fig 6: PCM Circuit Diagram (6 Of 15)

G08092167

Courtesy of AMERICAN HONDA MOTOR CO., INC.

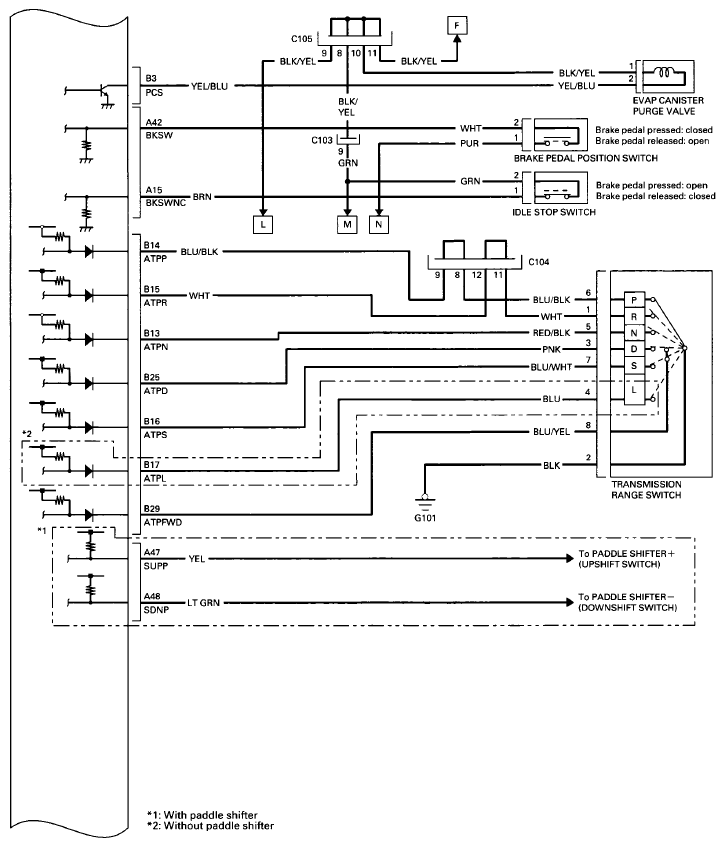

Fig 7: PCM Circuit Diagram (7 Of 15)

G08092168

Courtesy of AMERICAN HONDA MOTOR CO., INC.

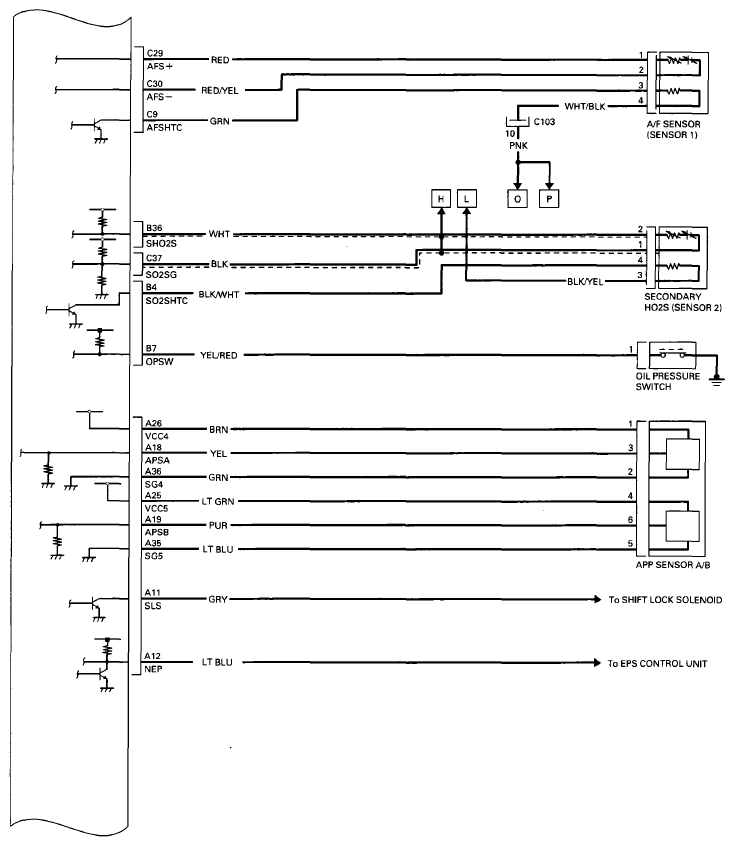

Fig 8: PCM Circuit Diagram (8 Of 15)

G08092169

Courtesy of AMERICAN HONDA MOTOR CO., INC.

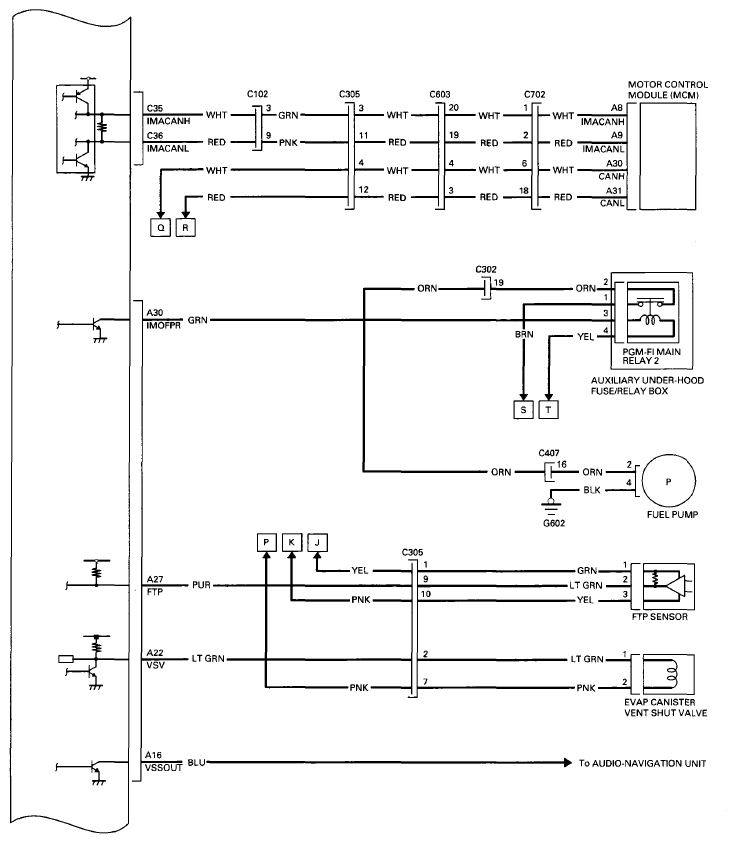

Fig 9: PCM Circuit Diagram (9 Of 15)

G08092170

Courtesy of AMERICAN HONDA MOTOR CO., INC.

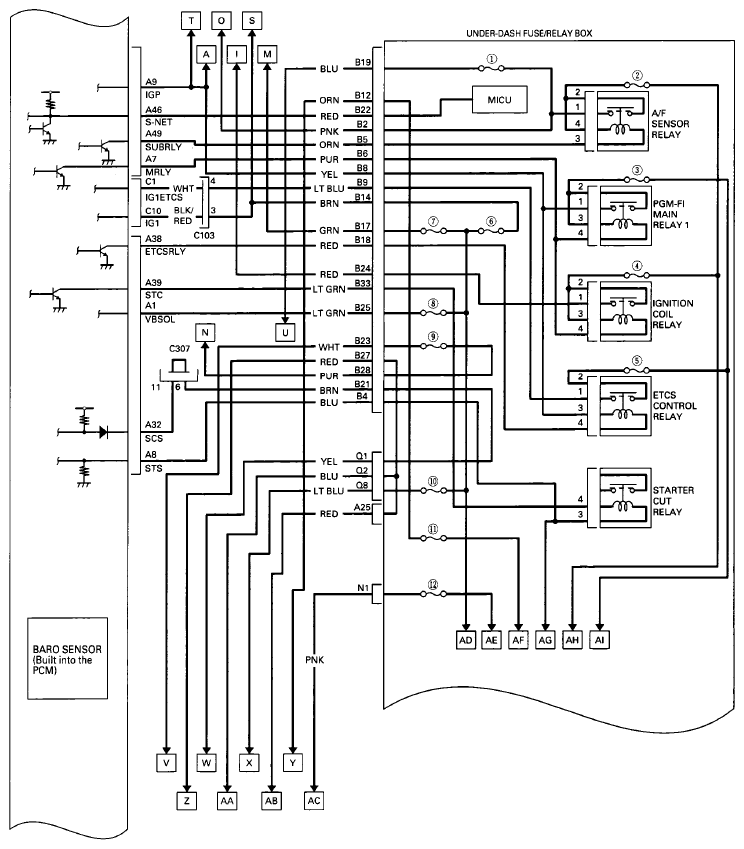

Fig 10: PCM Circuit Diagram (10 Of 15)

G08092171

Courtesy of AMERICAN HONDA MOTOR CO., INC.

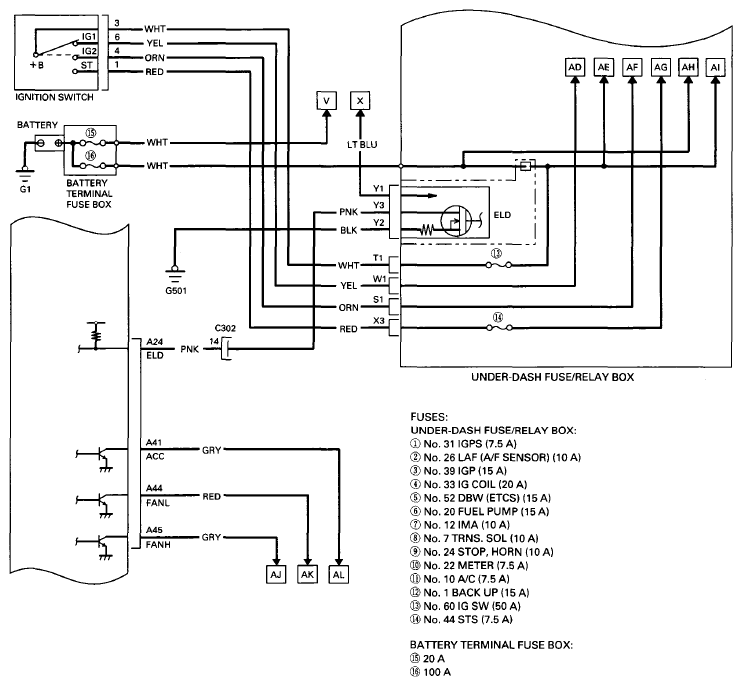

Fig 11: PCM Circuit Diagram (11 Of 15)

G08092172

Courtesy of AMERICAN HONDA MOTOR CO., INC.

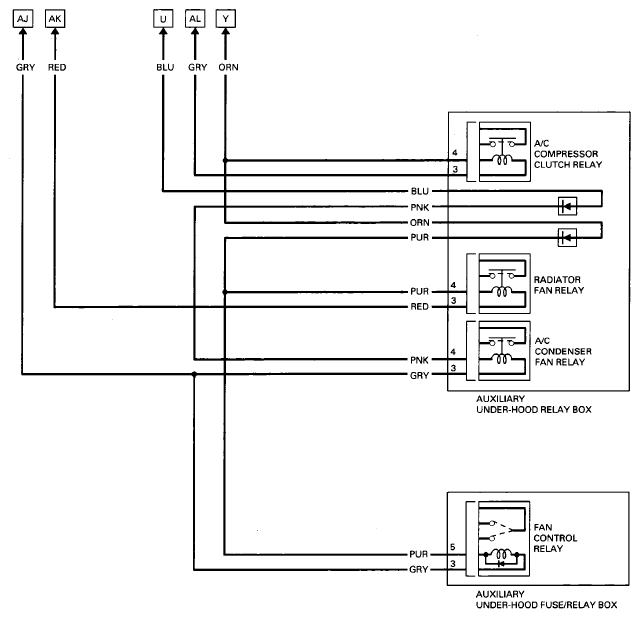

Fig 12: PCM Circuit Diagram (12 Of 15)

G08092173

Courtesy of AMERICAN HONDA MOTOR CO., INC.

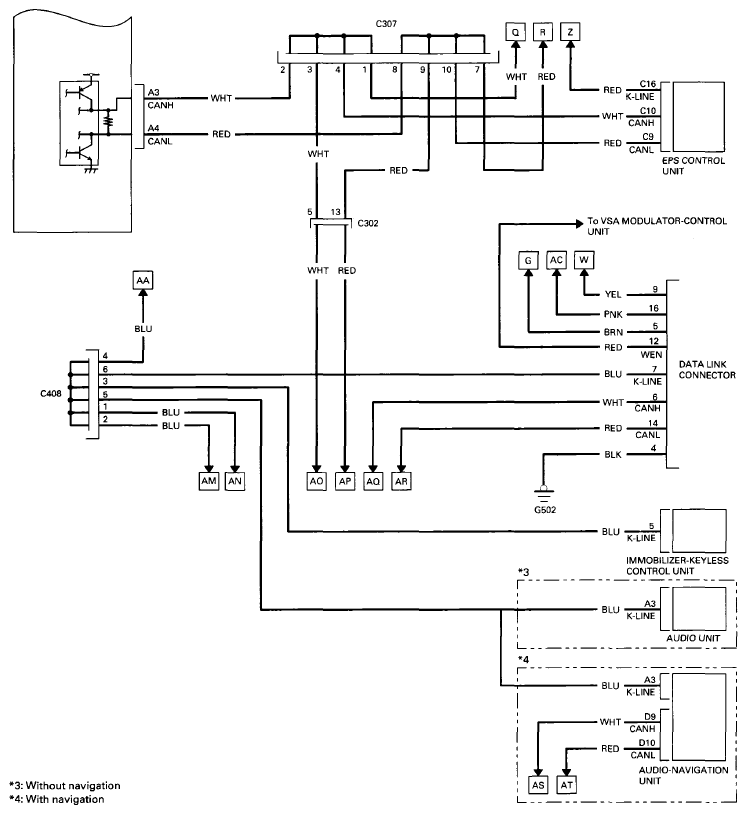

Fig 13: PCM Circuit Diagram (13 Of 15)

G08092174

Courtesy of AMERICAN HONDA MOTOR CO., INC.

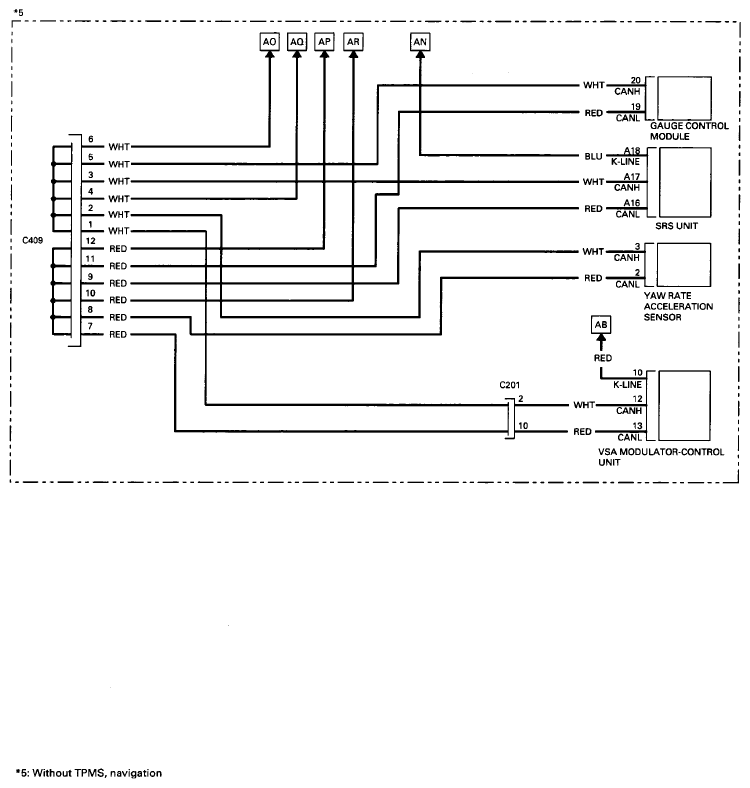

Fig 14: PCM Circuit Diagram (14 Of 15)

G08092175

Courtesy of AMERICAN HONDA MOTOR CO., INC.

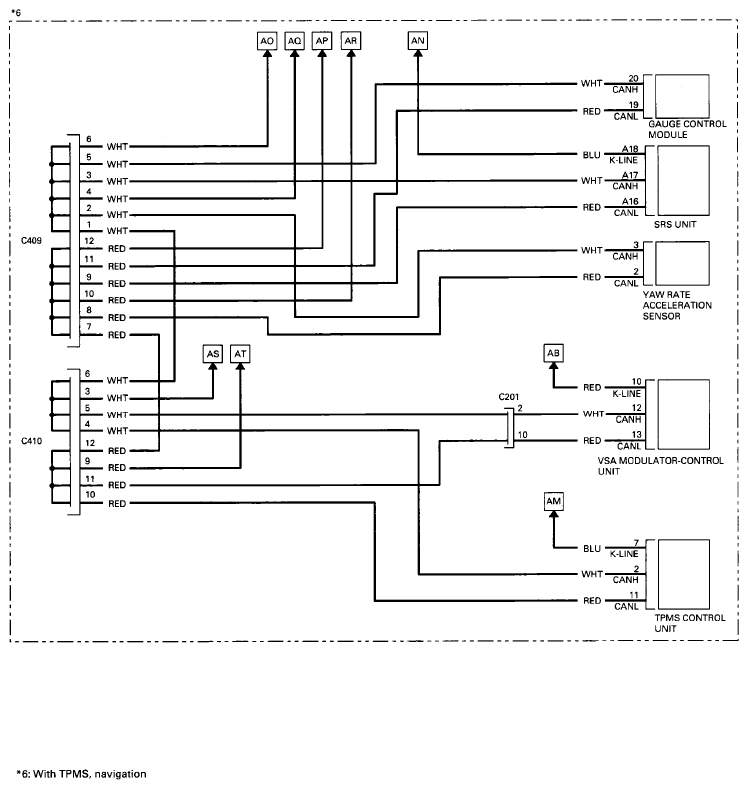

Fig 15: PCM Circuit Diagram (15 Of 15)

G08092176

Courtesy of AMERICAN HONDA MOTOR CO., INC.
