PCM Electrical Connections

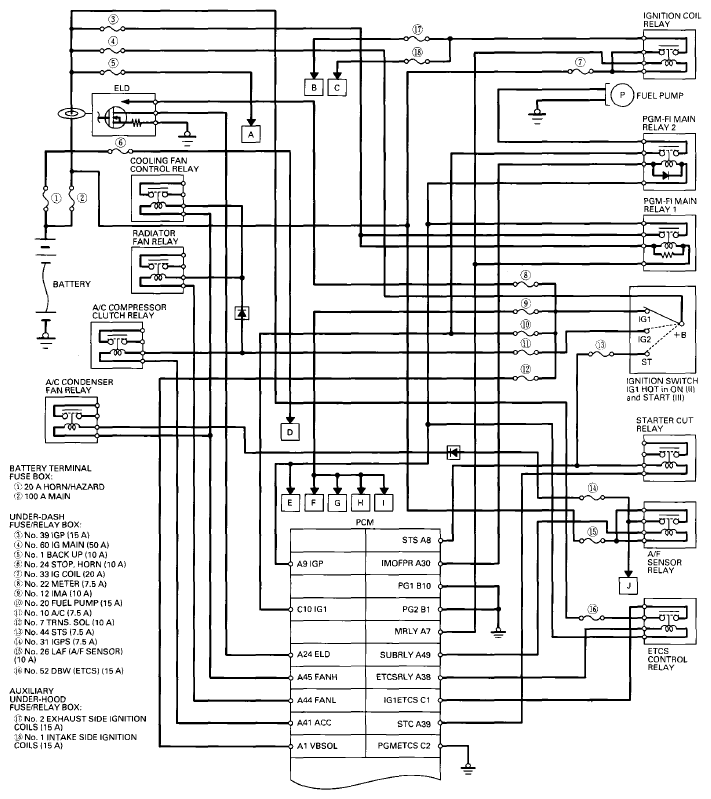

Fig 1: PCM Electrical Connection Diagram (1 Of 6)

G08092156

Courtesy of AMERICAN HONDA MOTOR CO., INC.

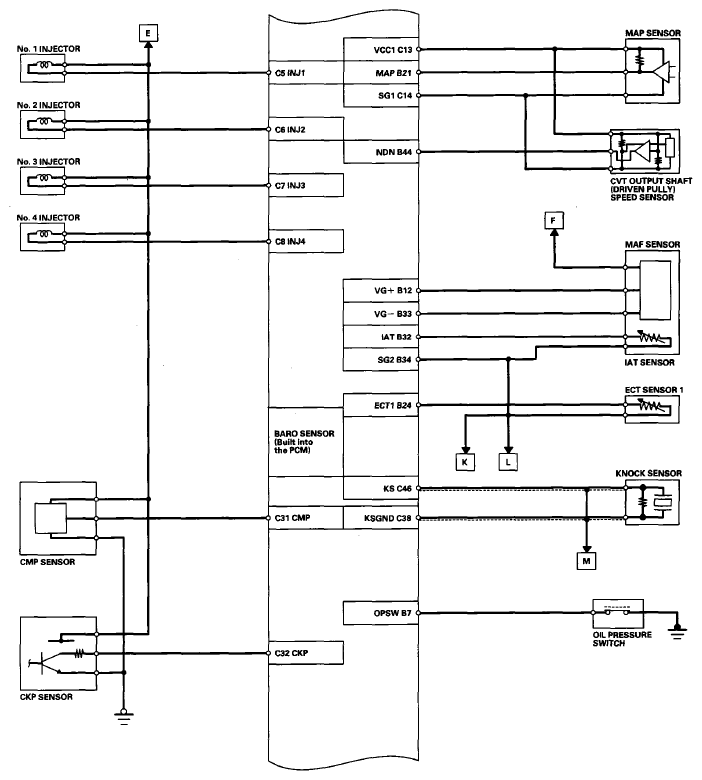

Fig 2: PCM Electrical Connection Diagram (2 Of 6)

G08092157

Courtesy of AMERICAN HONDA MOTOR CO., INC.

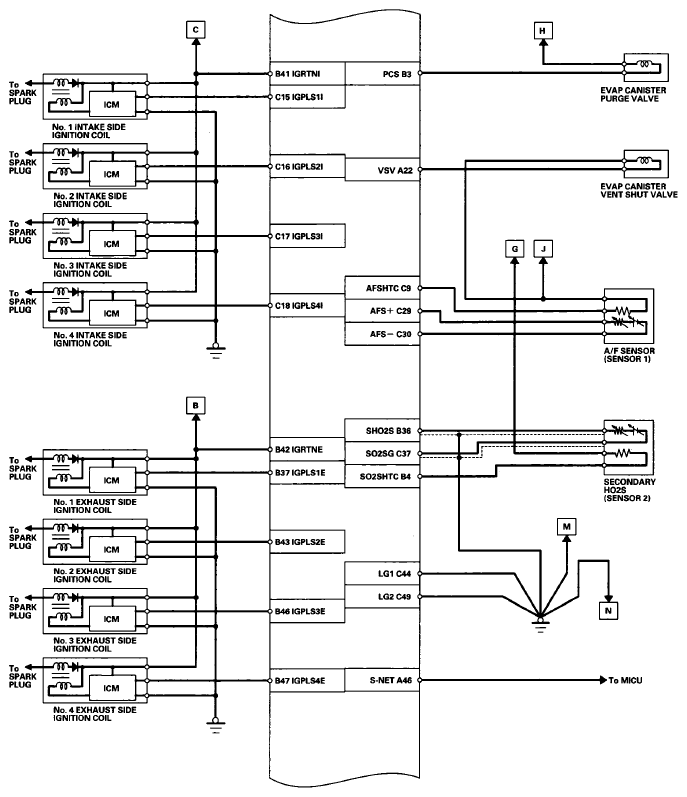

Fig 3: PCM Electrical Connection Diagram (3 Of 6)

G08092158

Courtesy of AMERICAN HONDA MOTOR CO., INC.

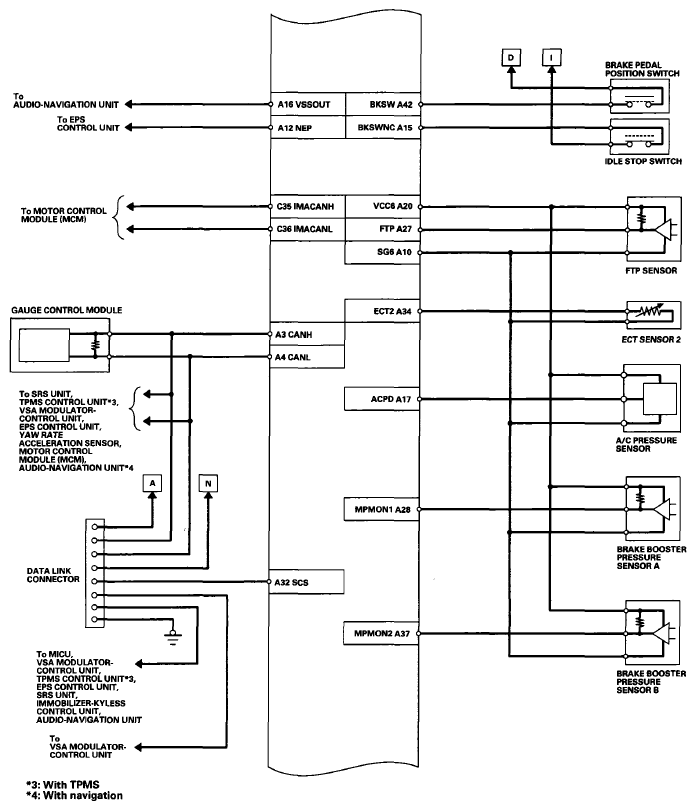

Fig 4: PCM Electrical Connection Diagram (4 Of 6)

G08092159

Courtesy of AMERICAN HONDA MOTOR CO., INC.

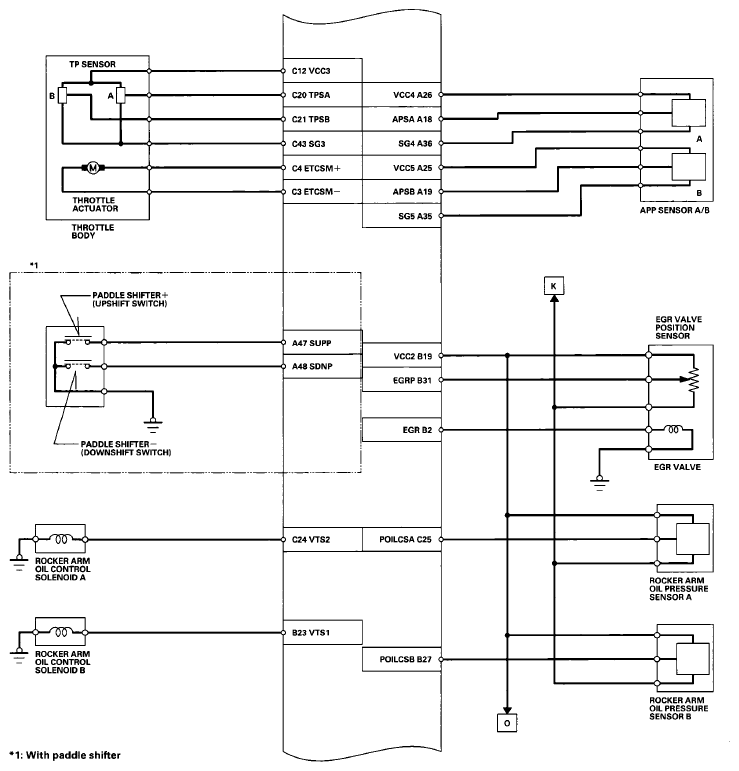

Fig 5: PCM Electrical Connection Diagram (5 Of 6)

G08092160

Courtesy of AMERICAN HONDA MOTOR CO., INC.

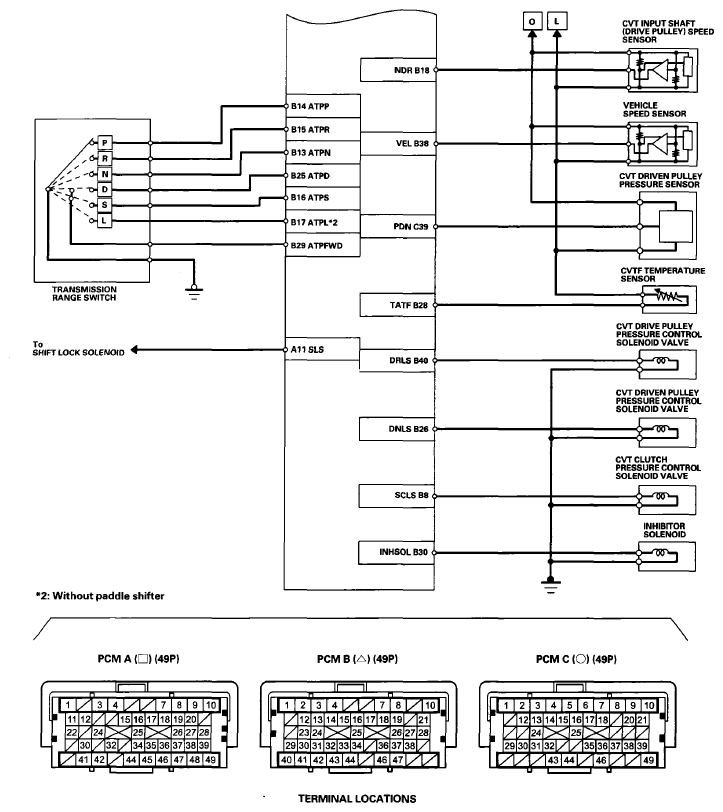

Fig 6: PCM Electrical Connection Diagram (6 Of 6)

G08092161

Courtesy of AMERICAN HONDA MOTOR CO., INC.
