Manifold Absolute Pressure (MAP) Sensor

The MAP sensor converts manifold absolute pressures into electrical signals that are sent to the PCM.

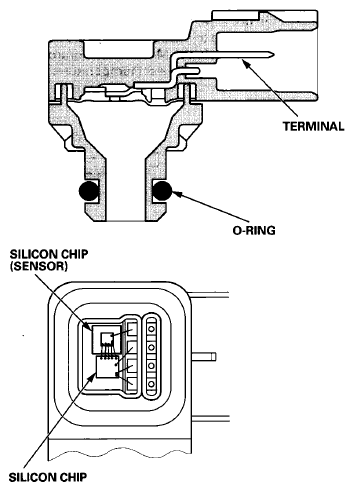

Fig 1: Cross-Section View Of Manifold Absolute Pressure (MAP) Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
