Fuel Fill Pipe Removal/Installation

Drain the fuel tank until it is less than half full (see FUEL TANK DRAINING ).
Remove the fuel fill cap.
Raise the vehicle on a lift.
Remove the left rear wheel.
Remove the fuel fill pipe cover (A).

Fig 1: Identifying Fuel Fill Pipe Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the quick-connect fittings (A) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).

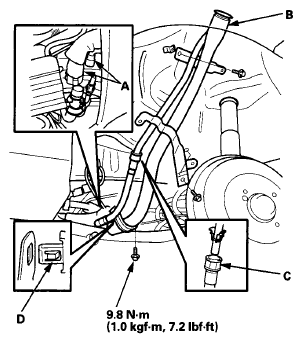

Fig 2: Quick-Connect Fittings, Fuel Fill Pipe, Clip And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel fill pipe (B).
Disconnect the quick-connect fittings (C).
Remove the clip (D) from the fuel fill pipe.
Install the parts in the reverse order of removal.
