Fuel Pressure Regulator Replacement

  1. Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
  2. Remove the reservoir (A).

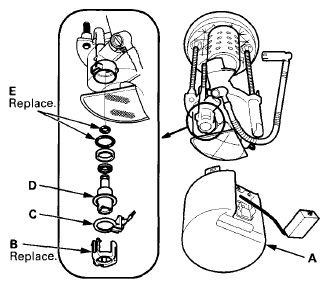

    Fig 1: Identifying Reservoir, Bracket, Ground Ring And Fuel Pressure Regulator
    G08092562Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bracket (B).
  4. Remove the ground ring (C).
  5. Remove the fuel pressure regulator (D).
  6. Install the parts in the reverse order of removal with new O-rings (E) and a new bracket. When installing the fuel tank unit, align the marks on the unit and the fuel tank (see INSTALLATION ).
    NOTE:
    • Coat the O-rings with clean engine oil; do not use any other oils or fluids.
    • Do not pinch the O-rings during installation.
    • Use all the new parts supplied in the pressure regulator replacement kit.
