Fuel Tank Unit Removal and Installation: Removal

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Remove the rear seat cushion (see REAR SEAT REMOVAL/INSTALLATION ).
Remove the access panel (A) from the floor.

Fig 1: Identifying Access Panel, Fuel Tank Unit 4P Connector And Quick-Connect Fittings
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the fuel tank unit 4P connector (B).
Disconnect the quick-connect fittings (C) from the fuel tank unit.
Using the special tool, loosen the locknut (A).

Fig 2: Loosening Locknut Using Special Tool
Courtesy of AMERICAN HONDA MOTOR CO., INC.

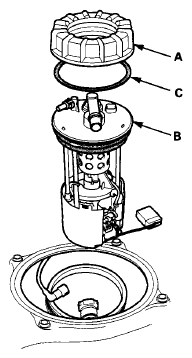

Remove the locknut (A), the fuel tank unit (B), and the locknut plate (C).

Fig 3: Identifying Locknut, Fuel Tank Unit And Locknut Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
