ELD Replacement

Remove the under-dash fuse/relay box (USA model) (see REMOVAL AND INSTALLATION ), (Canada model) (see CANADA MODEL ).

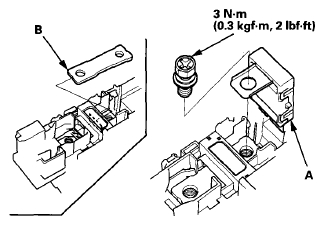

Remove the fuse (A).

Fig 1: Fuse, Joint Bar And Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the joint bar (B).

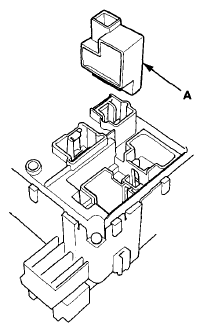

Turn over the under-dash fuse/relay box, then remove the ELD (A).

Fig 2: Identifying ELD
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
