Block Cover Removal and Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the block cover (A).

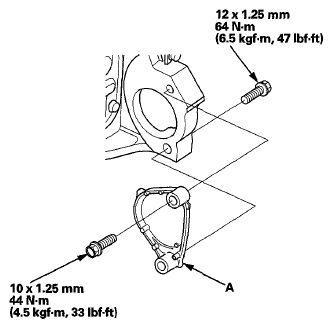

    Fig 1: Block Cover With Torque Specifications
    G06429036Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the block cover in the reverse order of removal.
