CKP Pulse Plate Replacement

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankshaft (see CRANKSHAFT AND PISTON REMOVAL ).
Remove the crankshaft position (CKP) pulse plate (A).

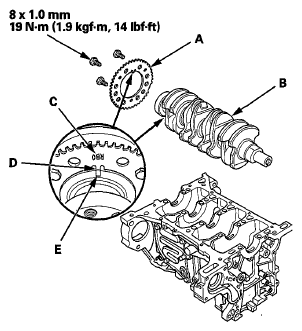

Fig 1: Aligning Tab On CKP Pulse Plate With Groove On Crankshaft With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the CKP pulse plate on the crankshaft (B); face the marked side (C) opposite the crankshaft, and align the tab (D) on the CKP pulse plate with the groove (E) on the crankshaft.
Install the crankshaft (see CRANKSHAFT INSTALLATION ).
