HFL-Navigation Microphone Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front individual map light (see INDIVIDUAL MAP LIGHT TEST/REPLACEMENT ).

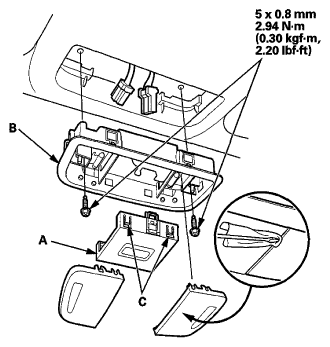

Fig 1: HFL-Navigation Microphone And Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully pry off the microphone (A) from the map light housing (B) while pressing the retaining tabs (C).
Install the HFL-navigation microphone in the reverse order of removal.
