Position Detection Image with GPS Satellite

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

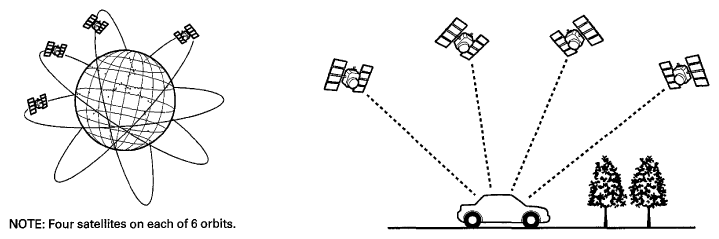

Fig 1: Identifying GPS Satellite Signal Position
G06431920Courtesy of AMERICAN HONDA MOTOR CO., INC.
