Monitor Check: Notes
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
Overview of navigation display unit.
The illumination input from the gauge brightness control with the headlights on provides back lighting for the buttons surrounding the screen.

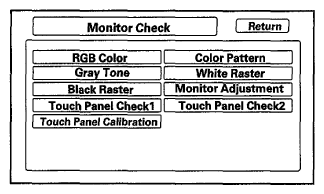

These screens allow you to troubleshoot the navigation display. Select the item you want to troubleshoot, and follow the diagnostic instructions.
