Unit Check (Quick Check): GPS

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

If GPS indicates NG (ANT), then check the entire GPS antenna wire from the audio-navigation unit to the GPS antenna. If the wire is crushed or damaged, try a known-good antenna. If the diagnostic reads OK, replace the original GPS antenna. If the diagnostic still reads NG (ANT), replace the audio-navigation unit.

Select information to see the GPS satellite details.

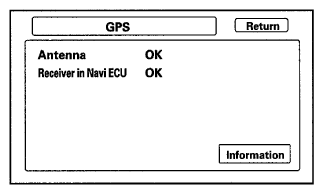

Fig 1: Screen Display - GPS Satellite

Courtesy of AMERICAN HONDA MOTOR CO., INC.
