Yaw Sensor

WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

This screen gives a quick test of the yaw sensor functionality based on the two voltages Sensor and Offset. For more information see the Yaw Rate Diagnostic.

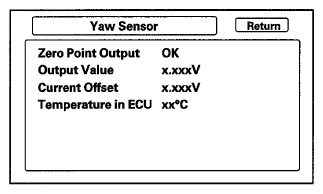

Fig 1: Screen Display - Yaw Sensor
G06431955Courtesy of AMERICAN HONDA MOTOR CO., INC.
